Wide Angle 2.79 inch 142x428 Color IPS TFT Display NV3007 Controller
- Buy 10 for US$3.79 each and save 3%
- Buy 30 for US$3.69 each and save 5%
- Buy 50 for US$3.59 each and save 8%
- Buy 100 for US$3.48 each and save 11%
- Buy 500 or more Quote Request
Shipping
Payment
Tax Info
Warranty
Return Policy
Continulty Supply
-
This Item:
Wide Angle 2.79 inch 142x428 Color IPS TFT Display NV3007 Controller
US$3.89
-

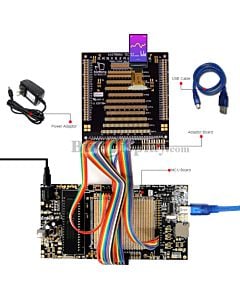

8051 Microcontroller/MCU Development Board for TFT LCD ER-TFT2.79-1
US$22.26
-
Total price
Description
ER-TFT2.79-1 is 2.79 inch bar type screen ips tft lcd display, featuring a sharp resolution of 142x428 pixels. With an impressive contrast ratio of 1000:1, it excels in rendering deep blacks and vibrant colors, ensuring a visually striking experience.The IPS technology allows full viewing angle.its brightness level of 600cd/m2 ensures clear and vibrant visuals even in brightly lit environments. It is equipped with the NV3007 controller. It features a 4-wire SPI interface that ensures stable and efficient data transmission and a connctor type FPC with optional FPC connector.
It's suitable for smartwatches, fitness trackers, and health monitoring devices in wearable technology and blood pressure monitors, glucose meters, and patient monitoring systems in medical technology.
For users of the 8051 microcontroller, we have carefully prepared a comprehensive interfacing document, demonstration code, and an 8051 development board specifically tailored for this display.
What's included in the package ?
| Number | Standard Accessory Name | Quantity |
|---|---|---|
| 1 | 2.79 inch 142x428 Pixels IPS TFT LCD Display | 1 |
Datasheet for Display
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
 |
ER-TF2.79-1_Datasheet | English | Mar-26-2025 | 612K |
|
Controller NV3007_Datasheet | English | Jun-19-2024 | 2.8M |
|
10 Pins 0.5mm Pitch ZIF Connector Drawing | English | Jul-26-2012 | 248K |
Tutorial - 8051 Microcontroller
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
 |
8051 Interfacing and Demo Code | English | Mar-29-2024 | 242K |
 |
N/A |
N/A
|
N/A |
| Gross Weight (kg) | 0.0200 |
|---|---|
| Manufacturer | EastRising |
| Continuity Supply | We promise the long term continuity supply for this product no less than 10 years since 2025. |
| Part Number | ER-TFT2.79-1 |
| Display Format | 142x428 Pixels |
| Interface | 4-wire SPI |
| IC or Equivalent | NV3007 |
| Appearance | RGB |
| Diagonal Size | 2.79" |
| Connection | Plug-in FPC |
| Outline Dimension | 24.38(W)x69.43(H)x2.1(T)mm |
| Visual Area | 22.28x65.14mm |
| Active Area | 21.28(W)x66.14(H)mm |
| Dot (Pixel) Pitch | 0.149x0.154mm |
| IC Package | COG |
| Display Type | TFT-LCD Color |
| Touch Panel Optional | No |
| Sunlight Readable | No |
| Contrast Ratio(Typ) | 1000:1 |
| Colors | 65K/262K |
| Viewing Direction | IPS |
| Viewing Angle Range | Left:80.0 , Right:80.0 , Up:80.0 , Down:80.0 degree |
| Brightness(Typ) | 600cd/m2 |
| Backlight Color | White Color |
| Backlight Current (Typ) | 100mA |
| Power Supply(Typ) | 2.8V |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
