Serial SPI I2C 10.1"TFT LCD Module Dislay w/RA8876,OPTL Touch Panel
- Buy 10 for US$60.35 each and save 3%
- Buy 30 for US$58.69 each and save 5%
- Buy 50 for US$57.09 each and save 8%
- Buy 100 for US$55.46 each and save 11%
- Buy 500 or more Quote Request
Shipping
Payment
Tax Info
Warranty
Return Policy
Continulty Supply
-
This Item:
Serial SPI I2C 10.1"TFT LCD Module Dislay w/RA8876,OPTL Touch Panel
US$61.98
-
New WINBOND IC Chip FLASH 128M BIT W25Q128JV SOP8 Package
US$1.87
-
EANSDI 1GB TF Flash Memory Card Micro SD
US$4.83
-
Total price
Description

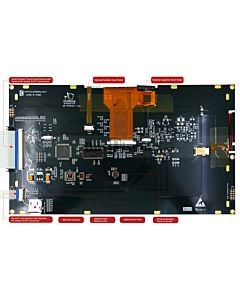

ER-TFTM101-1 is 1024x600 dots 10.1 "color tft lcd display with RA8876 or LT7683 controller board,Optional capacitive touch panel with controller and resistive touch panel,superior display quality and easily controlled by MCU such as 8051(C51), PIC, AVR, ARDUINO,ARM and Raspberry PI .It can be used in any embedded systems,industrial device,security and hand-held equipment which requires display in high quality and colorful image.Portrait mode is also available.
It supports 8080 6800 8-bit,16-bit parallel,3-wire,4-wire,I2C serial spi interface.Built-in MicroSD card slot.It's optional for touch panel controller,4-wire resistive touch panel screen. font chip, flash chip and microsd card. We offer two types connection,one is pin header and the another is ZIF connector with flat cable mounting on board by default and suggested.
Of course, we wouldn't just leave you with a datasheet and a "good luck!".Here is the link for 10.1"TFT Touch Shield with Libraries, Examples.Schematic Diagram for Arduino Due,Mega 2560,Uno. For 8051 microcontroller user,we prepared the detailed tutorial such as interfacing, demo code and development kit at the bottom of this page.
Datasheet for Display Module
| Format | Documents Name | Version | Language | Update Date | Size |
|---|---|---|---|---|---|
 |
ER-TFTM101-1 Datasheet | 1.1 | English | Oct-30-2021 |
2.5M
|
 |
ER-TFTM101-1_3D Model | 1.0 | English |
Jan-28-2021 |
9.5M |
|
Controller LT7683 Datasheet | 1.0 | English | Jul-10-2020 | 4.8M |
|
Controller RA8876 Datasheet | 1.0 | English | Aug-11-2015 | 4.7M |
Datasheet for Touch Panel,Controller
| Format | Documents Name | Version | Language | Update Date | Size |
|---|---|---|---|---|---|
|
10.1 inch 4-Wire Touch Panel Datasheet | 1.0 | English | Apr-21-2015 | 235K |
|
10.1 inch Capacitive Touch Panel with Controller Outline | 1.0 | English |
Apr-12-2018
|
283K |
|
Capacitive Touch Controller GT9271 Datasheet | 1.0 | English | Nov-11-2014 | 1.65M |
Datasheet for Flash Memory,MicroSD Card Slot
| Format | Documents Name | Version | Language | Update Date | Size |
|---|---|---|---|---|---|
|
128M-BIT Flash W25Q128FV Datasheet | 1.0 | English | Oct-01-2012 | 1.0M |
|
MicoSD Card Slot Drawing | 1.0 | English | Dec-12-2013 | 1.2M |
Datasheet for Font Chip
| Format | Documents Name | Version | Language | Update Date | Size |
|---|---|---|---|---|---|
|
1.0 | English |
May-08-2010
|
621K | |
|
1.0 | English |
Mar-27-2014
|
2M | |
|
1.0 | English |
Oct-01-2013
|
688K | |
|
1.0 | English |
Apr-12-2013
|
935K |
Datasheet for ZIF Connector
| Format | Documents Name | Version | Language | Update Date | Size |
|---|---|---|---|---|---|
|
1.0 | English |
Aug-07-2013
|
270K | |
|
1.0 | English |
Aug-07-2013
|
266K | |
|
1.0 | English |
Apr-19-2013
|
268K |
Tutorial- 8051 Microcontroller
| Format | Documents Name | Version | Language | Update Date | Size |
|---|---|---|---|---|---|
 |
1.0 | English |
Aug-09-2016
|
432K | |
|
1.0 | English |
Aug-09-2016
|
432K | |
|
1.0 | English |
Aug-09-2016
|
432K | |
|
1.0 | English |
Aug-09-2016
|
432K | |
|
1.0 | English |
Aug-09-2016
|
432K | |
|
1.0 | English |
Nov-12-2018
|
117K | |
|
1.0 | English |
Nov-12-2018
|
118K | |
|
1.0 | English |
Nov-12-2018
|
118K | |
|
1.0 | English |
Nov-12-2018
|
119K | |
|
1.0 | English |
Aug-28-2015
|
403K | |
|
1.0 | English |
Nov-12-2018
|
328K | |
 |
N/A | N/A |
N/A
|
N/A |
| Gross Weight (kg) | 0.6500 |
|---|---|
| Manufacturer | EastRising |
| Continuity Supply | We promise the long term continuity supply for this product no less than 10 years since 2015. |
| Part Number | ER-TFTM101-1 |
| Display Format | 1024x600 Pixels |
| Interface | I2C, 3-wire SPI, 4-wire SPI, 6800 8-bit Parallel , 6800 16-bit Parallel , 8080 8-bit Parallel , 8080 16-bit Parallel |
| IC or Equivalent | LT7683, RA8876 |
| Appearance | RGB |
| Diagonal Size | 10.1“ |
| Connection | Pin Header, Plug-in FFC |
| Outline Dimension | 248.5(W)x145.5(H)mm |
| Visual Area | 226.40x128.70mm |
| Active Area | 222.72(W)x125.28(H)mm |
| Dot (Pixel) Pitch | 0.2175(W)x0.2088(H)mm |
| IC Package | SMT |
| Display Type | TFT-LCD Color |
| Touch Panel Optional | Yes |
| Sunlight Readable | No |
| Contrast Ratio(Typ) | 500:1 |
| Colors | 65K |
| Viewing Angle Range | Left:60.0 , Right:60.0 , Up:50.0 , Down:50.0 degree |
| Brightness(Typ) | 150cd/m2 |
| Backlight Color | White Color |
| Power Supply(Typ) | 3.3V, 5V |
| Supply Current for LCM(Max) | 750mA (VDD=3.3V),450mA (VDD=5.0V) |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
-
