Serial SPI 3.5"TFT LCD Module in 320x480,OPTL TouchScreen,ILI9488
US$9.03
-
8051 Microcontroller/MCU Development Board for TFT LCD ER-TFT035-6
US$28.56
-
Total price
Description

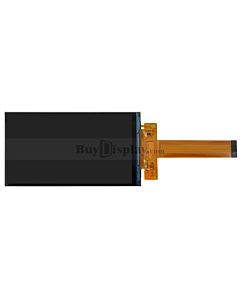

ER-TFT035-6 is 320x480 dots 3.5" color tft lcd module display with ILI9488 controller,superior display quality,super wide viewing angle.As a bonus, this display has a optional resistive touch panel and a optional capacitive touch panel with controller FT6236, so you can detect finger presses anywhere on the screen and doesn't require pressing down on the screen with a stylus and has nice glossy glass cover and easily controlled by MCU such as 8051, PIC, AVR, ARDUINO ARM and Raspberry PI.It can be used in any embedded systems,industrial device,security and hand-held equipment which requires display in high quality and colorful image.It supports 8080 8-bit,9-bit,16-bit, parallel,3-wire,4-wire serial spi interface. FPC with zif connector is easily to assemble or remove.Lanscape mode is also available.
Of course, we wouldn't just leave you with a datasheet and a "good luck!".Here is the link for 3.5"TFT Touch Shield with Libraries, Examples.Schematic Diagram for Arduino Due,Mega 2560 and Uno . For 8051 microcontroller user,we prepared the detailed tutorial such as interfacing, demo code and development kit at the bottom of this page.
What's included in the package ?
| Number | Standard Accessory Name | Quantity |
|---|---|---|
| 1 | 3.5 inch 320x480 pixels TFT LCD Display | 1 |
Datasheet for TFT LCD Display,Controller,Connector
| Format | Documents Name | Version | Language | Update Date | Size |
|---|---|---|---|---|---|
 |
3.5 inch 320x480 Dots TFT LCD Display Datasheet | 1.0 | English |
Dec-12-2015 |
645K |
 |
ER-TFT035-6 3D Model.step | 1.0 | English |
Dec-02-2020 |
3.1M |
|
Controller ILI9488 Datasheet | 1.0 | English | Jun-01-2009 | 3.2M |
|
50 Pins 0.50mm Pitch ZIF Connector Drawing | 1.0 | English | Jul-26-2012 | 657K |
Datasheet for Touch Panel,Controller
| Format | Documents Name | Version | Language | Update Date | Size |
|---|---|---|---|---|---|
|
3.5 inch Resistive Touch Panel Outline Drawing | 1.0 | English |
Jan-08-2016 |
270K |
|
3.5 inch Capacitive Touch Panel Outline Drawing | 1.0 | English |
May-22-2015 |
257K |
|
Capacitive Touch Panel Controller FT6236 Datasheet | 1.0 | English |
Oct-20-2012 |
674K |
Tutorial - 8051 Microcontroller Demo Code
| Format | Documents Name | Version | Language | Update Date | Size |
|---|---|---|---|---|---|
 |
8080 8-Bit,Touch Panel,Font Chip,Flash,MicroSD Demo Code | 1.0 | English | Dec-17-2015 | 159K |
|
|
8080 16-Bit,Touch Panel,Font Chip,Flash,MicroSD Demo Code | 1.0 | English | Dec-17-2015 | 159K |
|
|
3-Wire SPI,Touch Panel,Font Chip,Flash,MicroSD Demo Code | 1.0 | English | Dec-17-2015 | 159K |
|
|
4-Wire SPI,Touch Panel,Font Chip,Flash,MicroSD Demo Code | 1.0 | English | Dec-17-2015 | 159K |
|
|
ER-TFT035-6 w/Capacitive Resistive Touch Panel Interfacing Document | 1.0 | English | Sep-26-2017 | 422K |
 |
8051 Microcontroller Development Board & Kit for ER-TFT035-6 | N/A | N/A | N/A | N/A |
| Gross Weight (kg) | 0.0550 |
|---|---|
| Manufacturer | EastRising |
| Continuity Supply | We promise the long term continuity supply for this product no less than 10 years since 2015. |
| Part Number | ER-TFT035-6 |
| Display Format | 320x480 Pixels |
| Interface | RGB , 3-wire SPI, 4-wire SPI, 8080 8-bit Parallel , 8080 9-bit Parallel , 8080 16-bit Parallel |
| IC or Equivalent | ILI9488 |
| Appearance | RGB |
| Diagonal Size | 3.5” |
| Connection | Plug-in FPC |
| Outline Dimension | 56.54(W)x84.96(H)x2.25(T)mm |
| Visual Area | 50.56x75.04mm |
| Active Area | 48.96(W)x73.44(H)mm |
| Dot (Pixel) Pitch | 0.153x0.177mm |
| IC Package | COG |
| Display Type | TFT-LCD Color |
| Touch Panel Optional | Yes |
| Sunlight Readable | No |
| Contrast Ratio(Typ) | 500:1 |
| Colors | 65K/262K |
| Viewing Direction | 6:00 |
| Viewing Angle Range | Left:70.0 , Right:70.0 , Up:70.0 , Down:50.0 degree |
| Brightness(Typ) | 280cd/m2 |
| Backlight Color | White Color |
| Backlight Current (Typ) | 120mA |
| Power Supply(Typ) | 2.8V |
| Supply Current for LCM(Max) | 15mA |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
