Serial SPI 3.2"TFT LCD Module Display,ILI9341,Power than SainSmart
Availability: In stock
US$9.10
- Buy 10 for US$8.86 each and save 3%
- Buy 30 for US$8.60 each and save 5%
- Buy 50 for US$8.38 each and save 8%
- Buy 100 for US$8.14 each and save 11%
- Buy 500 or more Quote Request
Shipping
Payment
Tax Info
Warranty
Return Policy
Continulty Supply
Shipping
We cooperate with DHL,FEDEX,TNT,EMS China Post and Singapore Post for shipment and choose the most appropriate one for the destination .A shipping cost estimate is displayed during online checkout based on the country you provide.
Payment
We primarily use paypal to process secure online payments. Through PayPal, we accept MasterCard, VISA, American Express,Discover cards.We also accept payment by wire transfer and west union.
Tax Information
ALL prices listed on buydisplay exclude taxes,import fees, and customs duties. Customers may be subject to these fees.
Warranty
All products are covered under our limited warranty, which provides all products are free of functional defects for a period of one year after receipt of order and all products are free of visual defects and missing parts for a period of 7 days after receipt of order.If a product was damaged during shipping or the order is incorrect, please notify us within 3 days after receipt of order.
Return Policy
Products under warranty can be returned for repair or replacement.Before returning a product, you must contact us for a Return Material Authorization (RMA).If you have a product out of warranty that you would like to repair, please also contact us.
Continulty Supply
We promise the long terms continuity supply.Some controller IC or glass cell may stop the production by supplier,we'll try our efforts to find the compatible ones as replacement.
Description

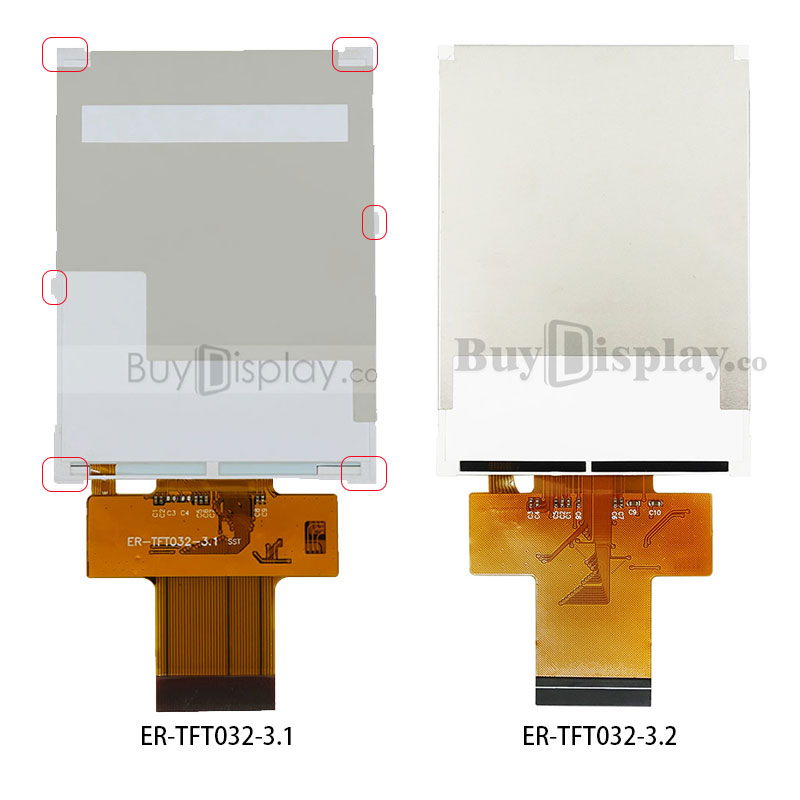

ER-TFT032-3.2 is 240x320 dots 3.2" color tft lcd module display with ILI9341 controller and optional 4-wire resistive touch panel and 3.2 inch capactive touch panel with controller FT6236,superior display quality,super wide viewing angle and easily controlled by MCU such as 8051, PIC, AVR, ARDUINO ARM and Raspberry PI.It can be used in any embedded systems,industrial device,security and hand-held equipment which requires display in high quality and colorful image.It supports 8080 8/16-bit parallel,3/4-wire serial interface. FPC with zif connector is easily to assemble or remove.Lanscape mode is also available.
Of course, we wouldn't just leave you with a datasheet and a "good luck!".Here is the link for 3.2"TFT Touch Shield with Libraries, Examples.Schematic Diagram for Arduino Due,Mega 2560 and Uno . For 8051 microcontroller user,we prepared the detailed tutorial such as interfacing, demo code and development kit at the bottom of this page.
What's included in the package ?
| Number | Standard Accessory Name | Quantity |
|---|---|---|
| 1 | 3.2 inch 240x320 pixels TFT LCD Display | 1 |
Datasheet for TFT LCD Display,Controller,Connector
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
 |
ER-TFT032-3.2_Datasheet | English | Dec-03-2021 | 873K |
|
Controller ILI9341 Datasheet | English | Jul-02-2013 | 3.2M |
|
40 Pins 0.50mm Pitch ZIF Connector Drawing | English | Aug-02-2014 | 357K |
Datasheet for Touch Panel,Controller
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
|
3.2 inch 4-Wire Resistive Touch Panel Drawing | English |
Jun-06-2016 |
302K |
|
3.2 inch Capacitive Touch Panel Outline Drawing | English |
Dec-02-2015 |
254K |
|
Capacitive Touch Panel Controller FT6236 Datasheet | English |
Jul-24-2014 |
674K |
Tutorial - 8051 Microcontroller Demo Code
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
 |
8080 8-bit Parallel Interface Demo Code | English | Oct-18-2013 | 163K |
|
|
8080 16-bit Parallel Interface Demo Code | English | Oct-18-2013 | 163K |
|
|
3-Wire SPI Serial Interface Demo Code | English | Oct-18-2013 | 163K |
|
|
4-Wire SPI Serial Interface Demo Code | English | Oct-18-2013 | 163K |
|
|
ER-TFT032-3 w/Capavitive Resistive Touch Panel Interfacing Document | English | Aug-02-2014 | 357K |
 |
8051 Microcontroller Development Board & Kit for ER-TFT032-3.2 | N/A | N/A | N/A |
| Gross Weight (kg) | 0.0470 |
|---|---|
| Manufacturer | EastRising |
| Continuity Supply | We promise the long term continuity supply for this product no less than 10 years since 2015. |
| Part Number | ER-TFT032-3.2 |
| Display Format | 240x320 Pixels |
| Interface | 3-wire SPI, 4-wire SPI, 8080 8-bit Parallel , 8080 16-bit Parallel |
| IC or Equivalent | ILI9341 |
| Appearance | RGB |
| Diagonal Size | 3.2” |
| Connection | Plug-in FPC |
| Outline Dimension | 55.04X(W)x77.50(H)X2.65(T)mm |
| Visual Area | 50.20x66.40mm |
| Active Area | 48.60(W)x64.80(H)mm |
| Dot (Pixel) Size | 0.2025x0.2025 |
| IC Package | COG |
| Display Type | TFT-LCD Color |
| Touch Panel Optional | Yes |
| Sunlight Readable | No |
| Contrast Ratio(Typ) | 500:1 |
| Colors | 65K/262K |
| Viewing Angle Range | Left:70.0 , Right:70.0 , Up:50.0 , Down:70.0 degree |
| Brightness(Typ) | 280cd/m2 |
| Backlight Color | White Color |
| Backlight Current (Typ) | 120mA |
| Power Supply(Typ) | 2.8V |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
