Red 2.6" inch e-Ink Display Module 296x152 for Arduino,Raspberry Pi
- Buy 10 for US$9.99 each and save 3%
- Buy 30 for US$9.73 each and save 5%
- Buy 50 for US$9.46 each and save 8%
- Buy 100 for US$9.19 each and save 11%
- Buy 500 or more Quote Request
Shipping
Payment
Tax Info
Warranty
Return Policy
Continulty Supply
-
This Item:
Red 2.6" inch e-Ink Display Module 296x152 for Arduino,Raspberry Pi
US$10.27
-
Raspberry Pi Zero W V1.3 with WIFI and Bluetooth
US$27.31
-
DUE R3 Board SAM3X8E 32-bit ARM Cortex-M3 for Arduino w/USB Cable
US$23.61
-
ATMEGA16U2 Board For Arduino Mega 2560 R3 Board 2012 Kit w/USB Cable
US$20.66
-
UNO R3 ATmega328P Development Board For Arduino Compatible+USB Cable
US$11.80
-
Total price
Summary: Update ER-EPM026-1R to ER-EPM026A1-1R
Reason: The controller IC UC8151C used on ER-EPM026-1R is EOL,so we change to new controller IC SSD1675A used on ER-EPM026A1-1R
Impact: ER-EPM026-1R is the same with ER-EPM026A1-1R in mechanical dimension and electrical spec except the controller IC.As old customer,you only need to upate your initialization code we prepared in this page.
Description

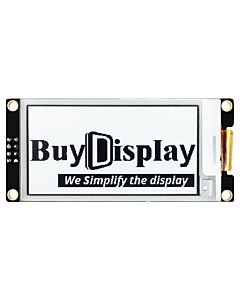

ER-EPM026A1-1R is e-paper/e-ink display module that is 2.6 inch e-paper display panel attached with a breakout board, 152x296 resolution.with red/white/black color,SSD1675A controller,running both 3.3V and 5V power supply,super wide viewing angle,sunlight readable and easily controlled by MCU such as PIC, AVR, ARDUINO,ARM and Raspberry PI. One fantastic aspect of the ePaper display is the fact they don't need any power to keep the image on the screen. Just like a Kindle, you can read whatever is on your screen in daylight without any reflection.It's optional for 3-wire or 4-wire serial interface,pin header or FFC with ZIF connector connection.

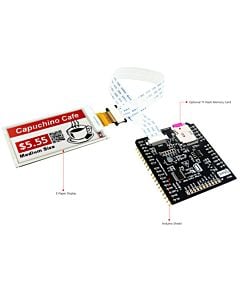

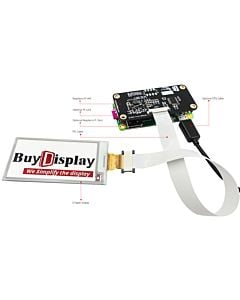

We prepared the library and examples for arduino due,mega 2560,uno,nano and for raspberry pi or raspberry pi zero. Dupont wires used for connecting to arduino and female header connector used for connecting to raspberry pi are also optional.
Package Content
◇ e-Paper Display Module x 1
* Please select if you wish to have optional accessories.
Application
◇ Logistics
◇ Reusable Transit Item
◇ Station Terminal
◇ Smart Card
◇ Smart Identity Tag
◇ Seat Number Tab
◇ Smart Luggage Tag
◇ Smart Coffee Cup
◇ Smart Home Application
◇ Identification & Access
◇ Display the Latest Weather Forecast
◇ Display Your Own Twitter Feed
◇ E-paper room booking system
◇ Other IoT (Internet of Things) Devices
◇ 1D/2D Barcode Electronic Shelf Label
Datasheet
| Format | Documents Name | Version | Language | Update Date | Size |
|---|---|---|---|---|---|
 |
2.6 inch E-Paper/E-Ink Display Module Datasheet | 1.0 | English | Apr-30-2020 |
1.5M
|
|
Controller IC SSD1675A Datasheet | 1.0 | English | Dec-17-2016 | 1.44M |
Tutorial-Arduino
| Format | Documents Name | Version | Language | Update Date | Size |
|---|---|---|---|---|---|
 |
Arduino Library and Example for 4-wire SPI | 1.0 | English | Apr-30-2020 | 66K |
|
Arduino Interfacing Document | 1.0 | English | Sep-05-2019 |
161K
|
Tutorial-Raspberry Pi
| Format | Documents Name | Version | Language | Update Date | Size |
|---|---|---|---|---|---|
|
Raspberry Pi Library and Example for 4-wire SPI | 1.0 | English | Apr-30-2020 | 252K |
|
Raspberry Pi Interfacing Document | 1.0 | English | Sep-05-2019 | 77K |
| Gross Weight (kg) | 0.0450 |
|---|---|
| Manufacturer | EastRising |
| Continuity Supply | We promise the long term continuity supply for this product no less than 10 years since 2019. |
| Part Number | ER-EPM026A1-1R |
| Display Format | 152x296 Dots |
| Interface | 3-wire SPI, 4-wire SPI |
| IC or Equivalent | SSD1675 |
| Appearance | Red+Black on White |
| Diagonal Size | 2.6“ |
| Connection | Pin Header, Plug-in FFC |
| Outline Dimension | 36.60(W)x82.00(H)mm |
| Visual Area | 30.70x60.09mm |
| Active Area | 30.70(W)x60.09(H)mm |
| Dot (Pixel) Pitch | 0.203x0.202mm |
| IC Package | COG |
| Display Type | E-Paper |
| Touch Panel Optional | No |
| Sunlight Readable | Yes |
| Viewing Angle Range | Left:85.0 , Right:85.0 , Up:85.0 , Down:85.0 degree |
| Brightness(Typ) | 80cd/m2 |
| Power Supply(Typ) | 3V |
| Operating Temperature | 0℃~40℃ |
| Storage Temperature | -25℃~60℃ |
