Low Cost IPS 4.3 inch LCD Display Arduino SPI I2C TFT Touchscreen 480x272
US$22.19
- Buy 10 for US$21.63 each and save 3%
- Buy 30 for US$21.08 each and save 5%
- Buy 50 for US$20.52 each and save 8%
- Buy 100 for US$19.97 each and save 10%
- Buy 500 or more Quote Request
Shipping
Payment
Tax Info
Warranty
Return Policy
Continulty Supply
Shipping
We cooperate with DHL,FEDEX,TNT,EMS China Post and Singapore Post for shipment and choose the most appropriate one for the destination .A shipping cost estimate is displayed during online checkout based on the country you provide.
Payment
We primarily use paypal to process secure online payments. Through PayPal, we accept MasterCard, VISA, American Express,Discover cards.We also accept payment by wire transfer and west union.
Tax Information
ALL prices listed on buydisplay exclude taxes,import fees, and customs duties. Customers may be subject to these fees.
Warranty
All products are covered under our limited warranty, which provides all products are free of functional defects for a period of one year after receipt of order and all products are free of visual defects and missing parts for a period of 7 days after receipt of order.If a product was damaged during shipping or the order is incorrect, please notify us within 3 days after receipt of order.
Return Policy
Products under warranty can be returned for repair or replacement.Before returning a product, you must contact us for a Return Material Authorization (RMA).If you have a product out of warranty that you would like to repair, please also contact us.
Continulty Supply
We promise the long terms continuity supply.Some controller IC or glass cell may stop the production by supplier,we'll try our efforts to find the compatible ones as replacement.
Frequently Bought Together
-
This Item:
Low Cost IPS 4.3 inch LCD Display Arduino SPI I2C TFT Touchscreen 480x272
US$22.19
-
DUE R3 Board SAM3X8E 32-bit ARM Cortex-M3 for Arduino w/USB Cable
US$23.61
-
ATMEGA16U2 Board For Arduino Mega 2560 R3 Board 2012 Kit w/USB Cable
US$20.66
-
UNO R3 ATmega328P Development Board For Arduino Compatible+USB Cable
US$11.80
-
EANSDI 1GB TF Flash Memory Card Micro SD
US$4.83
-
Total price
Description

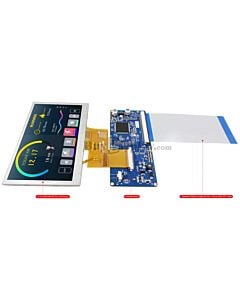

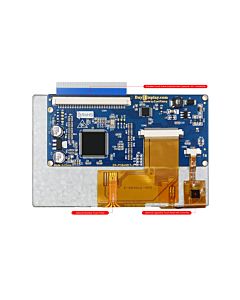

ER-TFT043A4-3-3-5517 is 480x272 pixel 4.3" IPS color tft lcd display with small controller board,superior display quality,super wide viewing angle and easily controlled by MCU such as 8051, PIC, AVR, ARDUINO, and ARM .It can be used in any embedded systems,industrial device,security and hand-held equipment which requires display in high quality and colorful image.
It supports 8080 6800 8-bit,16-bit parallel,3-wire,4-wire,I2C serial spi interface.It's optional for resistive touch panel with controller or capacitive touch panel with controller,optional arduino shield with library and examples and optional for power supply.
Datasheet for TFT LCD Display,Connector
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
 |
ER-TFT043A4-3-5517_Datasheet | English | Dec-15-2022 | 5.2M |
 |
4.3 inch TFT LCD Display Panel_3D Model | English | Aug-30-2023 | 302K |
|
ER5517 Controller Board_3D Model | English | Aug-17-2023 | 2.0M |
|
40 Pins 1.0mm Pitch ZIF Connector Drawing | English | Apr-19-2013 | 159K |
Datasheet for Touch Panel,Controller
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
|
|
4.3 inch Resisitve Touch Panel Outline Drawing | English | May-13-2013 | 434K |
|
|
Resistive Touch Panel Controller XPT2046 Datasheet | English | May-01-2007 | 578K |
|
|
4.3 inch Capacitive Touch Panel Outline Drawing | English | Apr-21-2014 | 190K |
|
|
Capacitive Touch Controller FT5206 Datasheet | English | Dec-20-2010 | 751K |

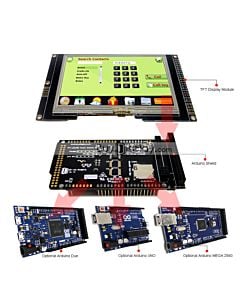

Datasheet for Schematic And Arduino Shield
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
|
|
ER-AS-5517 Datasheet | English | Dec-14-2021 | 1.1M |
|
|
ER-AS-5517 Arduino Schematic Diagram | English | Apr-25-2021 |
243K |
Tutorial - Arduino
It's better to use this program with the arduino shield provided by our company.
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
 |
Arduino Library and Example | English | Feb-10-2023 | 3.0M |
Tutorial - 8051
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
|
|
Serial/Parallel Interface+Capacitive and Resistive Touch 8051 Interfacing and Demo Code | English | Feb-10-2023 | 3.3M |
| Gross Weight (kg) | 0.1370 |
|---|---|
| Manufacturer | EastRising |
| Continuity Supply | We promise the long term continuity supply for this product no less than 10 years since 2023. |
| Part Number | ER-TFT043A4-3-5517 |
| Display Format | 480x272 Pixels |
| Interface | I2C, 3-wire SPI, 4-wire SPI, 6800 8-bit Parallel , 6800 16-bit Parallel , 8080 8-bit Parallel , 8080 16-bit Parallel |
| IC or Equivalent | N/A |
| Appearance | RGB |
| Diagonal Size | 4.3” |
| Connection | Plug-in FFC |
| Outline Dimension | 105.40(W)x67.10(H) |
| Visual Area | 97.90x56.65mm |
| Active Area | 95.04(W)x53.85(H)mm |
| Dot (Pixel) Pitch | 0.198(W)x0.197(H)mm |
| IC Package | COG |
| Display Type | TFT-LCD Color |
| Touch Panel Optional | Yes |
| Sunlight Readable | No |
| Contrast Ratio(Typ) | 500:1 |
| Colors | 65K/262K/16.7M |
| Viewing Direction | IPS |
| Viewing Angle Range | Left:80.0 , Right:80.0 , Up:80.0 , Down:80.0 degree |
| Brightness(Typ) | 500cd/m2 |
| Backlight Color | White Color |
| Backlight Current (Typ) | 15mA |
| Power Supply(Typ) | 3.3V |
| Supply Current for LCM(Max) | 230mA ( VDD=3.3V) / 180mA ( VDD=5.0V) |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
