IPS 5" Raspberry Pi Capacitive Touch Screen 800x480 HDMI USB Interface
- Buy 10 for US$28.20 each and save 3%
- Buy 30 for US$27.40 each and save 5%
- Buy 50 for US$26.68 each and save 8%
- Buy 100 for US$25.92 each and save 11%
- Buy 500 or more Quote Request
Shipping
Payment
Tax Info
Warranty
Return Policy
Continulty Supply
Description

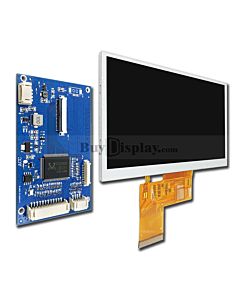

ER-TFT050-6-5247 is a high-quality 5 inch color TFT LCD display with a resolution of 800x480 pixels and an IPS panel. This display is designed to work with the Raspberry Pi, as well as other devices that have a universal HDMI port, such as mini PCs, BB Black, Banana Pi, and general desktop computers.
The display comes with an optional resistive or capacitive touch panel screen and can be used with optional USB and HDMI cables. It has a full viewing angle which means that it can be viewed from any angle without any distortion of the image.
When used with a Raspberry Pi, the display supports Raspbian, Ubuntu, WIN10 IOT, and single touch, without requiring any drivers. When used as a computer monitor, it supports Windows 11/10/8.1/8/7, five-points touch, and also does not require any drivers.
The display also has a multi-language OSD menu for power management, brightness and contrast adjustment, and other settings. Overall, ER-TFT050-6-5247 is a versatile and reliable display that can be used in a wide range of applications with ease.
Datasheet for TFT LCD Display
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
 |
ER-TFT050-6-5247 Datasheet | English | Dec-15-2022 |
1.1M
|
 |
ER-TFT050-6-5247_3D Model | English |
Jan-28-2021 |
3.4M |
| Gross Weight (kg) | 0.1800 |
|---|---|
| Manufacturer | EastRising |
| Continuity Supply | We promise the long term continuity supply for this product no less than 10 years since 2023. |
| Part Number | ER-TFT050-6-5247 |
| Display Format | 800x480 Pixels |
| Interface | HDMI, USB |
| IC or Equivalent | N/A |
| Appearance | RGB |
| Diagonal Size | 5.0“ |
| Connection | USB |
| Outline Dimension | 120.90(W)x89.80(H)x13.30(T)mm |
| Visual Area | 110.70x67.40mm |
| Active Area | 108.00(W)x64.80(H)mm |
| Dot (Pixel) Pitch | 0.135(W)x0.135(H)mm |
| IC Package | COG |
| Display Type | TFT-LCD Color |
| Touch Panel Optional | Yes |
| Sunlight Readable | No |
| Contrast Ratio(Typ) | 500:1 |
| Colors | 65K/262K/16.7M |
| Viewing Direction | IPS |
| Viewing Angle Range | Left:80.0 , Right:80.0 , Up:80.0 , Down:80.0 degree |
| Brightness(Typ) | 450cd/m2 |
| Backlight Color | White Color |
| Power Supply(Typ) | 5V |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
