This Item:
IPS 10.1 inch Raspberry PI Touch Screen w/ HDMI+Video+VGA Driver Board 1024x600
US$42.36
-
AC100-240V To DC 12V 2A Power Supply Adapter for TFT Driving Board
US$3.11
-
Total price
Attention
All the accessories listed below tier pricing need to pay.We won't deliver until you select. Power adaptor should be 12V/2000mA in output and center pin for positive voltage and the outer shield for negative voltage.The temperature for controller RTD2660 would increase during working.That's normal phenomenon,not quality problem.
When lose signal,the screen is blue or black that is available in the menu setting.There is no snowy screen or white noise in setting menu.
Description

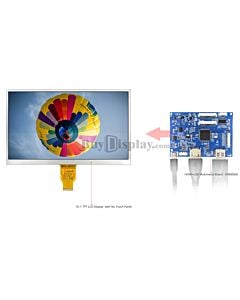

The ER-TFT101B4-1-3246 is a 10.1" IPS TFT LCD display with 1024x600 resolution, supporting HDMI, VGA, and Video signals. It boasts a high contrast ratio of 800:1 for deep blacks and vibrant colors, and a brightness of 600cd/m² suitable for indoor and outdoor use.The IPS technology allows full viewing angle.
Optional upgrades include resistive and capacitive touch panels with controller boards, plus remote control. With superior display quality and wide viewing angles, it's ideal for embedded systems, cars, industrial devices, security, and handheld equipment requiring high-quality, colorful video. Perfect for Raspberry Pi via HDMI.
What's included in the package ?
Number | Standard Accessory Name | Qty |
---|---|---|
1 | 10.1"IPS TFT LCD 1024x600 Pixels Display | 1 |
2 | HDMI+Video+VGA Driver Board | 1 |
3 | Keyboard Cable with Terminal | 1 |
Datasheet for Display
Format | Documents Name | Language | Update Date | Size |
---|---|---|---|---|
![]() |
ER-TFT101B4-1-3246_Datasheet | English |
Jul-24-2024 |
1.1M
|
Datasheet for Capacitive Touch
Format | Documents Name | Language | Update Date | Size |
---|---|---|---|---|
![]() |
ER-TPC101-3-USB Outline Drawing | English |
Oct-10-2018
|
285K
|
Datasheet for Resistive Touch
Format | Documents Name | Language | Update Date | Size |
---|---|---|---|---|
![]() |
English |
Apr-21-2015
|
235K | |
![]() |
English |
Jun-19-2013
|
190K | |
![]() |
English |
Jul-08-2013
|
56M |
Gross Weight (kg) | 0.6840 |
---|---|
Manufacturer | EastRising |
Continuity Supply | We promise the long term continuity supply for this product no less than 10 years since 2024. |
Part Number | ER-TFT101B4-1-3246 |
Display Format | 1024x600 Pixels |
Interface | HDMI, Video(CVBS), VGA |
IC or Equivalent | RTD2660H |
Appearance | RGB |
Diagonal Size | 10.1“ |
Connection | Plug-in FPC |
Outline Dimension | 235.0(W)x143.0(H)mm |
Visual Area | 226.40x128.70mm |
Active Area | 222.72(W)x125.28(H)mm |
Dot (Pixel) Pitch | 0.2175(W)x0.2088(H)mm |
IC Package | COG |
Display Type | TFT-LCD Color |
Touch Panel Optional | Yes |
Sunlight Readable | No |
Contrast Ratio(Typ) | 800:1 |
Colors | 65K/262K/16.7M |
Viewing Direction | IPS |
Viewing Angle Range | Left:80.0 , Right:80.0 , Up:80.0 , Down:80.0 degree |
Brightness(Typ) | 600cd/m2 |
Backlight Color | White Color |
Power Supply(Typ) | 12V |
Operating Temperature | -20℃~70℃ |
Storage Temperature | -30℃~80℃ |
