I2C Yellow 1.54" inch OLED Display Module 128x64 Arduino,Raspberry Pi
Availability: In stock
US$11.80
- Buy 10 for US$11.48 each and save 3%
- Buy 30 for US$11.15 each and save 6%
- Buy 50 for US$10.82 each and save 8%
- Buy 100 for US$10.49 each and save 11%
- Buy 500 or more Quote Request
Shipping
Payment
Tax Info
Warranty
Return Policy
Continulty Supply
Shipping
We cooperate with DHL,FEDEX,TNT,EMS China Post and Singapore Post for shipment and choose the most appropriate one for the destination .A shipping cost estimate is displayed during online checkout based on the country you provide.
Payment
We primarily use paypal to process secure online payments. Through PayPal, we accept MasterCard, VISA, American Express,Discover cards.We also accept payment by wire transfer and west union.
Tax Information
ALL prices listed on buydisplay exclude taxes,import fees, and customs duties. Customers may be subject to these fees.
Warranty
All products are covered under our limited warranty, which provides all products are free of functional defects for a period of one year after receipt of order and all products are free of visual defects and missing parts for a period of 7 days after receipt of order.If a product was damaged during shipping or the order is incorrect, please notify us within 3 days after receipt of order.
Return Policy
Products under warranty can be returned for repair or replacement.Before returning a product, you must contact us for a Return Material Authorization (RMA).If you have a product out of warranty that you would like to repair, please also contact us.
Continulty Supply
We promise the long terms continuity supply.Some controller IC or glass cell may stop the production by supplier,we'll try our efforts to find the compatible ones as replacement.
Frequently Bought Together
-
This Item:
I2C Yellow 1.54" inch OLED Display Module 128x64 Arduino,Raspberry Pi
US$11.80
-
DUE R3 Board SAM3X8E 32-bit ARM Cortex-M3 for Arduino w/USB Cable
US$23.61
-
ATMEGA16U2 Board For Arduino Mega 2560 R3 Board 2012 Kit w/USB Cable
US$20.66
-
UNO R3 ATmega328P Development Board For Arduino Compatible+USB Cable
US$11.80
-
Total price
Description

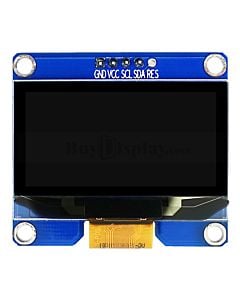

ER-OLEDM015-2Y-I2C is the graphic OLED display module,attached with breakout board,made of 128x64 individual Yellow OLED pixels,diagonal is only 1.54 inch.The controller ic SSD1309, communicates via I2C serial interface,3.3V power supply,extremely wide viewing angle and extremely operating temperature. It's pin header connection by default.
It's easily controlled by MCU such as 8051,PIC,AVR,ARDUINO,ARM and Raspberry Pi.It can be used in any embedded systems,industrial device,security,medical and hand-held device.
Of course, we wouldn't just leave you with a datasheet and a "good luck!" We prepared the interfacing documents,libraries and examples for arduino due,mega 2560,uno,nano and for raspberry pi or raspberry pi zero.For 8051 microcontroller user,we also prepared the interfacing document and demo code.
Datasheet for OLED Display,Controller IC
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
 |
ER-OLEDM015-2_Datasheet | English | Aug-26-2019 |
1.5M
|
 |
ER-OLEDM015-2_3D Model | English | Aug-23-2023 | 1.1M |
|
Controller IC SSD1309 Datasheet | English | Jul-25-2011 | 564K |
Tutorial - Arduino
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
 |
Arduino Library and Example | English | Sep-17-2019 |
21K
|
|
Interfacing I2C OLED Display Module to Arduino | English | Sep-05-2019 | 90K |
Tutorial - Raspberry Pi
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
|
Raspberry Pi Library and Example | English | Sep-17-2019 |
102K
|
|
Interfacing I2C OLED Display Module to Raspberry Pi | English | Sep-05-2019 | 54K |
Tutorial- 8051 Microcontroller
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
|
English |
Sep-19-2019
|
272K |
| Gross Weight (kg) | 0.0170 |
|---|---|
| Manufacturer | EastRising |
| Continuity Supply | We promise the long term continuity supply for this product no less than 10 years since 2019. |
| Part Number | ER-OLEDM015-2Y-I2C |
| Display Format | 128x64 Pixels (Dots) |
| Interface | I2C |
| IC or Equivalent | SSD1309 |
| Appearance | Yellow on Black |
| Diagonal Size | 1.54” |
| Connection | Pin Header |
| Outline Dimension | 42.40(W) x38.00(H) |
| Visual Area | 37.05x19.51mm |
| Active Area | 35.05(W) x17.51(H)mm |
| Dot (Pixel) Size | 0.25x0.25mm |
| Dot (Pixel) Pitch | 0.27x0.27mm |
| IC Package | COG |
| Display Type | OLED |
| Touch Panel Optional | No |
| Sunlight Readable | No |
| Viewing Angle Range | Free |
| Brightness(Typ) | 100cd/m2 |
| Power Supply(Typ) | 3.3V |
| Operating Temperature | -40℃~85℃ |
| Storage Temperature | -40℃~85℃ |
