I2C 0.63" Ultra Thin OLED Display Screen 120x28 SSD1312 14pins
- Buy 10 for US$1.29 each and save 3%
- Buy 30 for US$1.25 each and save 6%
- Buy 50 for US$1.22 each and save 8%
- Buy 100 for US$1.18 each and save 11%
- Buy 500 or more Quote Request
Shipping
Payment
Tax Info
Warranty
Return Policy
Continulty Supply
-
This Item:
I2C 0.63" Ultra Thin OLED Display Screen 120x28 SSD1312 14pins
US$1.33
-

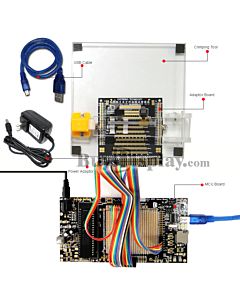

8051 Microcontroller Development Board for OLED Display ER-OLED0.63-1
US$22.26
-
Total price
Description
ER-OLED0.63-1W is the graphic OLED display panel made of 120x28 individual white OLED pixels,diagonal is only 0.63 inch.The controller ic SSD1312, communicates via I2C serial interface,thanks to controller's built-in voltage generation,only a single 3.3V power supply is needed. Because the display makes its own light, no backlight is required. This reduces the power required to run the OLED and is why the display has such high contrast,extremely wide viewing angle and extremely operating temperature.The fpc is the soldering type,no need connector.Just solder the FPC on your PCB directly.
The FPC is the soldering type,no need connector.Just solder the FPC on your PCB directly or use our optional soldering FPC connector for connection that's easy for insert or remove.
It's easily controlled by MCU such as 8051,PIC,AVR,ARDUINO,ARM and Raspberry Pi.It can be used in any embedded systems,industrial device,security,medical and hand-held device.
Of course, we wouldn't just leave you with a datasheet and a "good luck!".For 8051 microcontroller user,we prepared the detailed tutorial such as interfacing, demo code and Development Kit at the bottom of this page.
Datasheet for OLED Display,Controller
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
 |
ER-OLED0.63-1_Datasheet | English | May-20-2020 |
772K
|
|
Controller IC SSD1312 Datasheet | English |
Jan-17-2019
|
1.8M |
|
14 Pins 0.62mm Pitch ZIF Connector Drawing | English | May-17-2023 |
397K
|
Tutorial- 8051 Microcontroller
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
 |
English |
Apr-08-2020
|
173K | |
 |
N/A |
N/A
|
N/A |
| Gross Weight (kg) | 0.0180 |
|---|---|
| Manufacturer | EastRising |
| Continuity Supply | We promise the long term continuity supply for this product no less than 10 years since 2020. |
| Part Number | ER-OLED0.63-1W |
| Display Format | 120x28 Dots |
| Interface | I2C |
| IC or Equivalent | SSD1312 |
| Appearance | White on Black |
| Diagonal Size | 0.63" |
| Connection | Plug in & Soldering FPC |
| Outline Dimension | 21.54(W)x6.62(H)x1.22(T)mm |
| Visual Area | 16.58x4.62mm |
| Active Area | 15.58(W)x3.62(H)mm |
| Dot (Pixel) Size | 0.11x0.11mm |
| Dot (Pixel) Pitch | 0.13x0.13mm |
| IC Package | COG |
| Display Type | OLED |
| Touch Panel Optional | No |
| Sunlight Readable | No |
| Viewing Angle Range | Free |
| Brightness(Typ) | 100cd/m2 |
| Power Supply(Typ) | 2.8V |
| Operating Temperature | -40℃~85℃ |
| Storage Temperature | -55℃~125℃ |
