Free View Angle SPI 1.27 inch 128x96 Full Color RGB OLED Display Panel
- Buy 10 for US$15.16 each and save 3%
- Buy 30 for US$14.75 each and save 5%
- Buy 50 for US$14.34 each and save 8%
- Buy 100 for US$13.93 each and save 11%
- Buy 500 or more Quote Request
Shipping
Payment
Tax Info
Warranty
Return Policy
Continulty Supply
-
This Item:
Free View Angle SPI 1.27 inch 128x96 Full Color RGB OLED Display Panel
US$15.57
-
8051 Microcontroller Development Board for OLED Display ER-OLED1.27-1C
US$22.26
-
Total price
Description

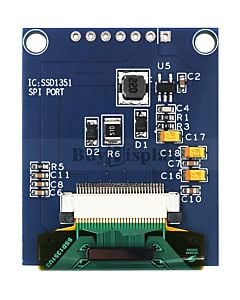

ER-OLED1.27-1C is the full color graphic OLED display panel made of 128xRGBx96 OLED pixels,diagonal is only 1.27 inch.The controller ic SSD1351, communicates via 8080/6800 8-bit Parallel or 4-wire serial SPI interface. Because the display makes its own light, no backlight is required. This reduces the power required to run the OLED and is why the display has such high contrast,extremely wide viewing angle and extremely operating temperature.The fpc is the connector type,we offer optional zif connector(fpc connector)
It's easily controlled by MCU such as 8051,PIC,AVR,ARDUINO,ARM and Raspberry Pi.It can be used in any embedded systems,industrial device,security,medical and hand-held device.
Of course, we wouldn't just leave you with a datasheet and a "good luck!".For 8051 microcontroller user,we prepared the detailed tutorial such as interfacing, demo code and Development Kit at the bottom of this page.
Datasheet for OLED Display,Controller,Connector
| Format | Documents Name | Version | Language | Update Date | Size |
|---|---|---|---|---|---|
 |
1.27 inch 128x96 Pixels OLED Display Panel Datasheet | 1.0 | English | Dec-02-2019 |
973K
|
|
1.0 | English | May-01-2008 | 2.1M | |
|
30Pins 0.5mm Pitch Top Contact FPC Connector Datasheet | 1.0 | English | Jul-26-2012 | 254K |
Tutorial- 8051 Microcontroller
| Format | Documents Name | Version | Language | Update Date | Size |
|---|---|---|---|---|---|
 |
1.0 | English |
Dec-10-2019
|
495K | |
 |
N/A | N/A |
N/A
|
N/A |
| Gross Weight (kg) | 0.0180 |
|---|---|
| Manufacturer | EastRising |
| Continuity Supply | We promise the long term continuity supply for this product no less than 10 years since 2019. |
| Part Number | ER-OLED1.27-1C |
| Display Format | 128x96 Dots |
| Interface | 4-wire SPI, 6800 8-bit Parallel , 8080 8-bit Parallel |
| IC or Equivalent | SSD1351 |
| Appearance | RGB |
| Diagonal Size | 1.27“ |
| Connection | Plug-in FPC |
| Outline Dimension | 33.70(W)x26.90(H)x1.6(T)mm |
| Visual Area | 27.70x21.28mm |
| Active Area | 25.70(W)x19.28(H)mm |
| Dot (Pixel) Size | 0.47x0.185mm |
| Dot (Pixel) Pitch | 0.067x0.201mm |
| IC Package | COG |
| Display Type | OLED |
| Touch Panel Optional | No |
| Sunlight Readable | No |
| Contrast Ratio(Typ) | 2000:1 |
| Colors | 262K |
| Viewing Angle Range | Free |
| Brightness(Typ) | 100cd/m2 |
| Power Supply(Typ) | 2.8V |
| Operating Temperature | -30℃~70℃ |
| Storage Temperature | -40℃~80℃ |
