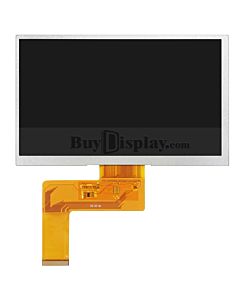

Color 7 inch 1024x600 TFT LCD Panel Optional Touchscreen AT070TNA2
Availability: In stock
US$16.46
- Buy 10 for US$16.07 each and save 2%
- Buy 30 for US$15.63 each and save 5%
- Buy 50 for US$15.20 each and save 8%
- Buy 100 for US$14.77 each and save 10%
- Buy 500 or more Quote Request
Shipping
Payment
Tax Info
Warranty
Return Policy
Continulty Supply
Shipping
We cooperate with DHL,FEDEX,TNT,EMS China Post and Singapore Post for shipment and choose the most appropriate one for the destination .A shipping cost estimate is displayed during online checkout based on the country you provide.
Payment
We primarily use paypal to process secure online payments. Through PayPal, we accept MasterCard, VISA, American Express,Discover cards.We also accept payment by wire transfer and west union.
Tax Information
ALL prices listed on buydisplay exclude taxes,import fees, and customs duties. Customers may be subject to these fees.
Warranty
All products are covered under our limited warranty, which provides all products are free of functional defects for a period of one year after receipt of order and all products are free of visual defects and missing parts for a period of 7 days after receipt of order.If a product was damaged during shipping or the order is incorrect, please notify us within 3 days after receipt of order.
Return Policy
Products under warranty can be returned for repair or replacement.Before returning a product, you must contact us for a Return Material Authorization (RMA).If you have a product out of warranty that you would like to repair, please also contact us.
Continulty Supply
We promise the long terms continuity supply.Some controller IC or glass cell may stop the production by supplier,we'll try our efforts to find the compatible ones as replacement.
Description

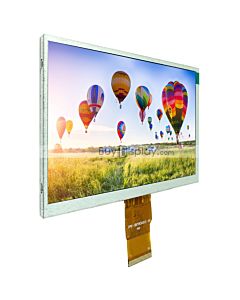

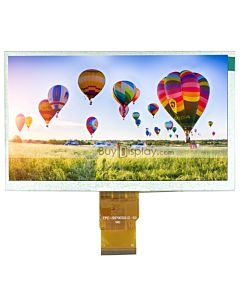

ER-TFT070-3 is 1024x600 dots 7" color tft lcd module display with EK79001 driver ic,optional capacitive touch panel with controller,connector and optional 4-wire resistive touch panel screen with connector,superior display quality,super wide view angle and easily controlled by MCU such as 8051, PIC, AVR, ARDUINO, ARM and Raspberry PI.Equivalent with AT070TNA2。
It can be used in any embedded systems,car,mp4,gps,industrial device,security and hand-held equipment which requires display in high quality and colorful image.It supports rgb interface. FPC with zif connector is easily to assemble or remove.
Of course, we wouldn't just leave you with a datasheet and a "good luck!".Here is the link for 7"TFT Touch Shield with Libraries, Examples.Schematic Diagram for Arduino Due,Mega 2560,Uno and 8051 Microcontroller Development Board&Kit.
The LED backlight driver IC we suggest to use for this display is PT4110.
What's included in the package ?
| Number | Standard Accessory Name | Quantity |
|---|---|---|
| 1 | 7 inch 1024x600 pixels TFT LCD Display | 1 |
Datasheet for TFT LCD Display,Controller,Connector
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
 |
ER-TFT070-3_Datasheet | English |
May-30-2013 |
558K |
 |
ER-TFT070-3_3D Model | English | Sep-09-2023 | 297K |
|
Driver IC (EK79001) Datasheet | English | Apr-25-2012 | 1.6M |
|

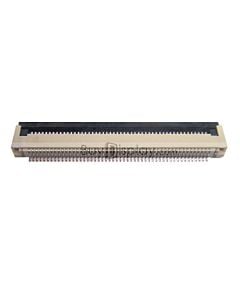

40 Pins 0.50mm Pitch FPC Connector Drawing | English | Jul-26-2012 | 272K |
Datasheet for Touch Panel,Connector
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
|
|
7 inch 4-Wire Resistive Touch Panel Datasheet | English | Feb-02-2013 | 247K |
|
|
4 Pins 1.0mm Pitch ZIF Connector Drawing for Touch Panel | English | Jul-26-2012 | 268K |
|
|

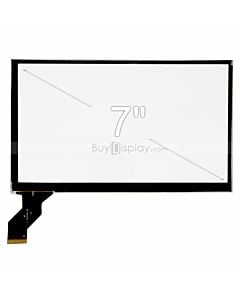

7 inch Capacitive Touch Panel with Controller Outline Drawing | English | Aug-10-2015 | 190K |
|
|
10 Pins 0.5mm Pitch ZIF Connector Drawing for Touch Panel | English | Mar-03-2013 | 148K |
| Gross Weight (kg) | 0.1400 |
|---|---|
| Manufacturer | EastRising |
| Continuity Supply | We promise the long term continuity supply for this product no less than 10 years since 2017. |
| Part Number | ER-TFT070-3 |
| Display Format | 1024x600 Pixels |
| Interface | LVDS |
| IC or Equivalent | EK79001 |
| Appearance | RGB |
| Diagonal Size | 7.0“ |
| Connection | Plug-in FPC |
| Outline Dimension | 165(W)x100.0(H)x3.4(T)mm |
| Visual Area | 156.50x89.00mm |
| Active Area | 154.21(W)x85.92(H)mm |
| Dot (Pixel) Pitch | 0.1506(W)x0.1432(H)mm |
| IC Package | COG |
| Display Type | TFT-LCD Color |
| Touch Panel Optional | Yes |
| Sunlight Readable | No |
| Contrast Ratio(Typ) | 500:1 |
| Colors | 16.7M |
| Viewing Angle Range | Left:70.0 , Right:70.0 , Up:60.0 , Down:70.0 degree |
| Brightness(Typ) | 220cd/m2 |
| Backlight Color | White Color |
| Power Supply(Typ) | 3.3V |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
