Description

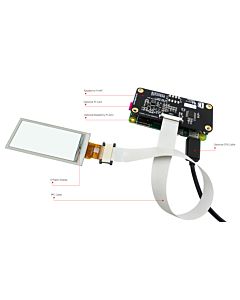

ER-EP0213-2B-5076 is e-paper/e-ink display module that is 2.13 inch e-paper display panel attached with a breakout board, 122x250 resolution with white/black color,UC8251 controller,running both 3.3V and 5V power supply,super wide viewing angle,sunlight readable and easily controlled by MCU such as PIC, AVR, ARDUINO,ARM and Raspberry PI. One fantastic aspect of the ePaper display is the fact they don't need any power to keep the image on the screen. Just like a Kindle, you can read whatever is on your screen in daylight without any reflection.It's optional for 3-wire or 4-wire serial interface,pin header or FFC with ZIF connector connection.
We prepared the library and examples for arduino due,mega 2560,uno,nano and for raspberry pi or raspberry pi zero. Dupont wires used for connecting to arduino and female header connector used for connecting to raspberry pi are also optional.
Package Content
◇ e-Paper Display Module x 1
* Please select if you wish to have optional accessories.
Application
◇ Logistics
◇ Reusable Transit Item
◇ Station Terminal
◇ Smart Card
◇ Smart Identity Tag
◇ Seat Number Tab
◇ Smart Luggage Tag
◇ Smart Coffee Cup
◇ Smart Home Application
◇ Identification & Access
◇ Display the Latest Weather Forecast
◇ Display Your Own Twitter Feed
◇ E-paper room booking system
◇ Other IoT (Internet of Things) Devices
◇ 1D/2D Barcode Electronic Shelf Label
Datasheet
Format | Documents Name | Language | Update Date | Size |
---|---|---|---|---|
![]() |
ER-EPD0213-2-5076_Datasheet | English | Aug-13-2024 |
1.5M
|
![]() |
Controller IC UC8251 Datasheet | English | Nov-22-2019 | 1.M |
Tutorial- 8051 Microcontroller
Format | Documents Name | Language | Update Date | Size |
---|---|---|---|---|
![]() |
Demo Code | English | Aug-16-2024 | 13K |
Tutorial-Arduino
Format | Documents Name | Language | Update Date | Size |
---|---|---|---|---|
![]() |
Arduino Library and Example for 4-wire SPI | English | Aug-16-2024 | 32K |
![]() |
Arduino Interfacing Document | English | Sep-05-2019 |
161K
|
Tutorial-Raspberry Pi
Format | Documents Name | Language | Update Date | Size |
---|---|---|---|---|
![]() |
Raspberry Pi Library and Example for 4-wire SPI | English | Aug-16-2024 | 136K |
![]() |
Raspberry Pi Interfacing Document | English | Sep-05-2019 | 77K |
毛重 (千克) | 0.0400 |
---|---|
生产厂家 | 旭东视佳 |
持续供货周期 | We promise the long term continuity supply for this product no less than 10 years since 2024. |
产品型号 | ER-EPD0213-2-5076 |
分辨率 | 122x250 像素 |
接口 | 3线串口SPI, 4线串口SPI |
IC或兼容IC | UC8251 |
显示与背景色 | 白底黑字 |
屏幕尺寸 | 2.13“ |
连接方式 | 排针, 插接型扁平电缆 |
外形尺寸 | 29.50(W) x70.00(H)mm |
视域 | 23.70x48.55mm |
图形域尺寸 | 23.70(W)x48.55(H)mm |
点间距 | 0.194x0.194mm |
IC封装方式 | COG |
显示器类型 | 电子纸 |
可选配触摸屏 | 不可选 |
阳光下可视 | 可视 |
可视范围 | 左视角 85.0度, 右视角 85.0 度 上视角 85.0 度, 下视角 85.0 度 |
亮度(典型值) | No |
背光功耗(典型值) | N/A |
电源电压(典型值) | 3V |
工作温度 | 0℃~50℃ |
储藏温度 | -25℃~60℃ |
