7 inch 1024x600 HMI Intelligent Smart UART SPI Touch IPS TFT LCD Display
- Buy 10 for ￥ 214.47 each and save 3%
- Buy 30 for ￥ 208.69 each and save 5%
- Buy 50 for ￥ 202.91 each and save 8%
- Buy 100 for ￥ 197.06 each and save 11%
- 购 500 及以上 大单询价
运输
付款
税款
保证
退回
停产
-
This Item:
7 inch 1024x600 HMI Intelligent Smart UART SPI Touch IPS TFT LCD Display
￥ 220.25
-
Debugging Board for UART HMI Display
￥ 25.36
-
1GB存储容量/存储卡/TF卡/内存卡/SD卡
￥ 32.84
-
Total price
Attention
The debugging board is specifically designed to facilitate debugging of projects and updating MCU or UI files via the UART port. We highly recommend acquiring one for your convenience
What's HMI/UART Display?
HMI+UART Display is a display solution that combines a human-machine interface with UART communication capabilities.
In addition to a controller,our HMI display also incorporates MCU functionality. The MCU receives commands sent from the main control board (client-side)via a UART interface and then displays text, images, or animations based on these predefined instructions. The MCU on the main control board(client-side) does not require complex programming or execution specifically for image display. You can use our GUI Design software - UI Editor to create text, images, or animations easily. No programming skill is needed.
Features of HMI/UART Display
1-High Quality

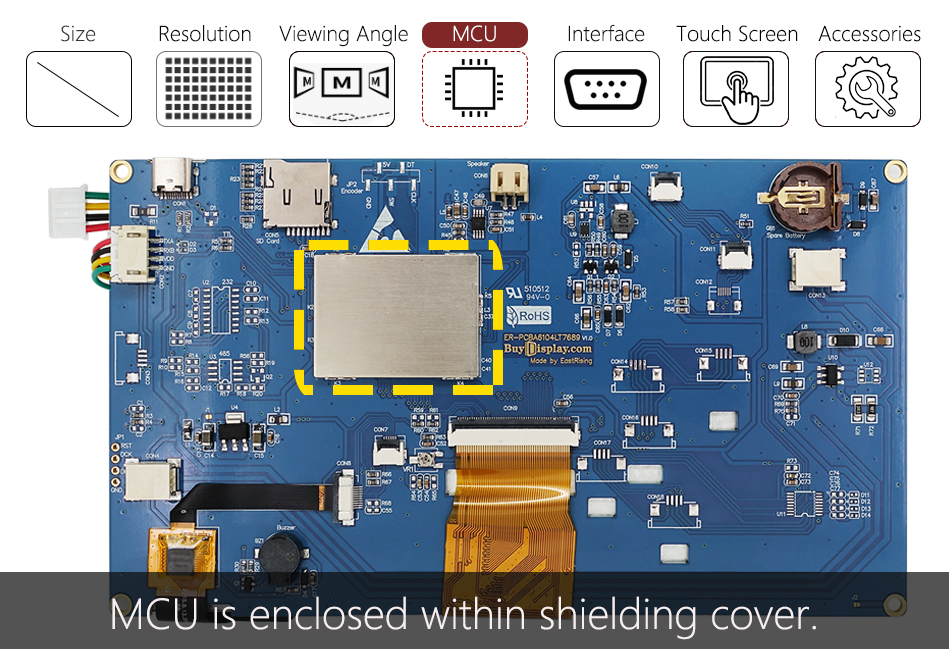

ER-TFT070A2-6-6104 is 7 inch 1024x600 HMI display utilize vivid full-view IPS panels with high- brightness backlight, and for anti-interference purposes, MCU is enclosed within shielding cover.
2-Various Options

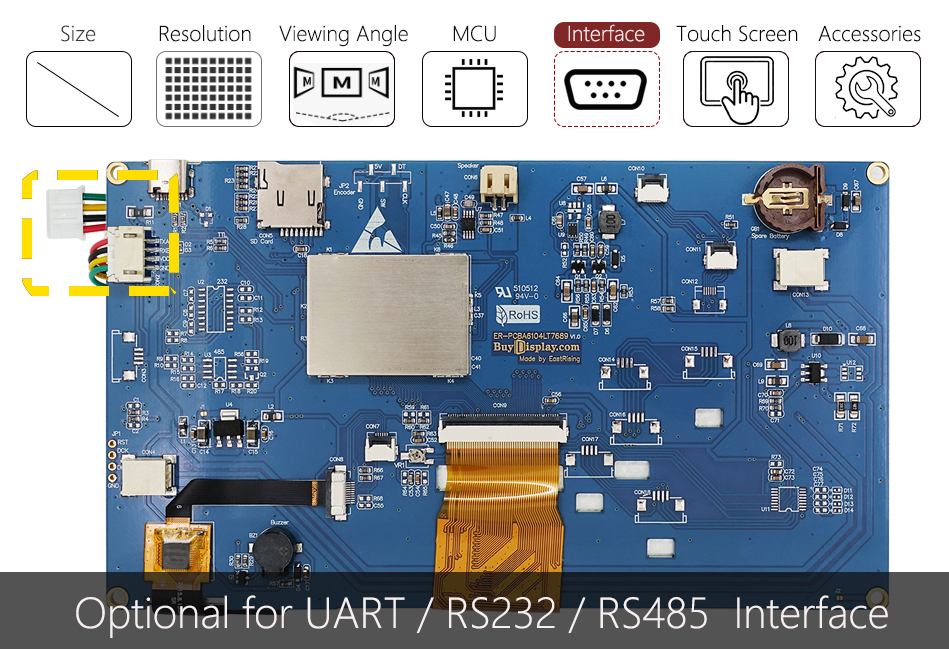

If the communication distance is too long for a UART interface, customers can choose RS232 or RS485 communication interfaces instead.

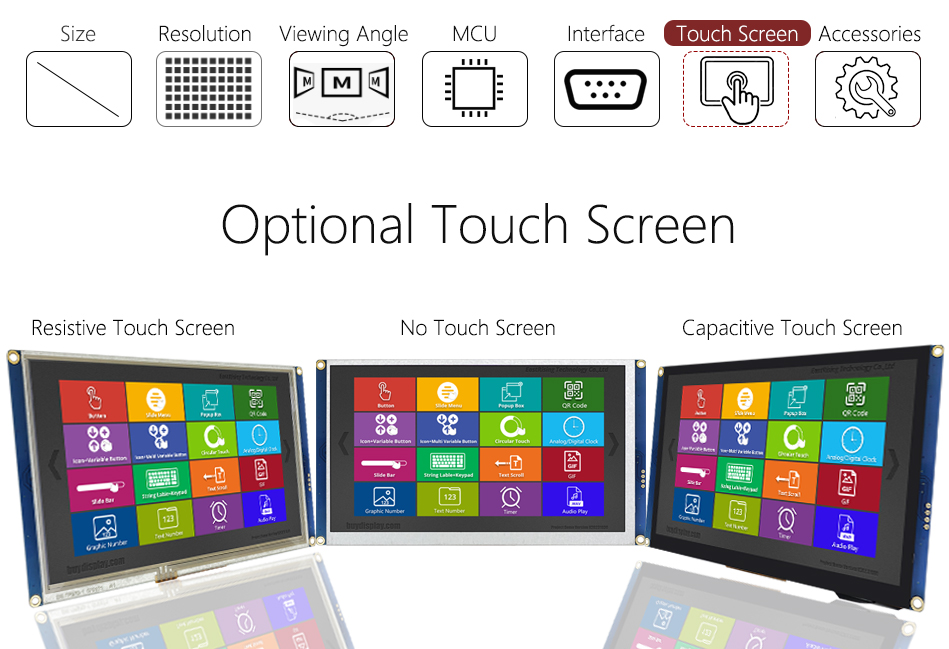

For touchscreens, customers can select from non-touch, resistive touchscreens, and capacitive touchscreens.
We also provide accessories such as louder speakers, rotary encoders, USB cables, SD cards, and debugging boards for customers to choose from.
3-Save Time&Cost
Without the need for touchscreen debugging or programming skills, customers can easily create a touch-enabled UI interface with rich graphics and texts using our provided GUI design software- UI Editor to saving customer's development time.
The pricing of this HMI Display is the same as that of a regular LCD module to save cost.
Features of Free GUI Design Software
1-Free UI Editor
① 5 Tools in 1
② Widgets Bar
③ Page Editing Window
④ Page ID and Name List
⑤ Widget List in the Designated Page
⑥ Widget Setting Window
(click below image for large one)
2-Popular Widgets List (click for demo)
Features of our services
1-Free Design
If you don't have time to learn how to use the UI Editor, we can help you make the UI interface you need. A new project will charge a design deposit based on the number of pages and widgets, and the entire design deposit will be refunded if the purchase amount reaches the standard.The images used in the UI are provided by the client. If our company provides the images required for the UI, there will be additional charges.| Design Deposit | Page Number | Widget Number | Reach the Purchase Amount to Refund Deposit |
| US$350 | ≤10 | ≤60 | US$7000 |
| US$700 | ≤20 | ≤120 | US$14000 |
2-Open-source Project
3-Tutorial
To maximize the functionality of the HMI Display, we have prepared a comprehensive User Manual for our customers. To facilitate a swift learning curve, we have also crafted informative and illustrative Blog articles detailing the usage of frequently accessed features along with solutions to related issues. Some of these articles are further enhanced with video tutorials, making the learning process even more effortless for our clients.
Datasheet for HMI Display
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
 |
ER-TFT070A2-6-6104_Datasheet | English | Nov-01-2024 | 1.8M |
Datasheet for Touch Panel
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
|
7 inch 4-Wire Resistive Touch Panel Datasheet | English | Feb-02-2013 | 247K |
|
|
Resistive Touch Panel Controller XPT2046 Datasheet | English | May-08-2007 | 579K |
|
|
7 inch Capacitive Touch Panel Outline Drawing | English | May-13-2013 | 353K |
|
|
Capacitive Touch Controller FT5316 Datasheet | English | Apr-03-2012 | 428K |
UI Editor
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
 |
UI_Editor-II_V2.30 | English | Jun-03-2024 | 86.1M |
|
|
UI_Editor-II_User_Manual_V2.30 | English | Jun-03-2024 | 11.6M |
 |
Open Source HMI Project for 1024x600 & 600x1024 | English | - | - |
|
|
HMI Display Tutorial | English | - | - |
|
|
UI Material Library for HMI Display | English | - | - |
| 毛重 (千克) | 0.2060 |
|---|---|
| 生产厂家 | 旭东视佳 |
| 持续供货周期 | 我们保证自2024年始至少10年内不会停产此款产品。 |
| 产品型号 | ER-TFT070A2-6-6104 |

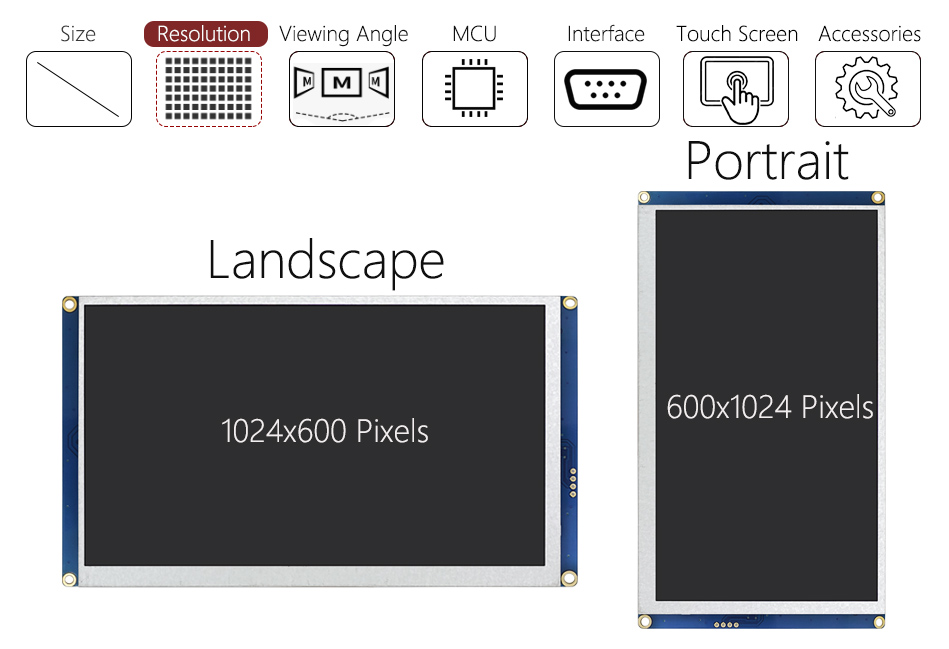

| 分辨率 | 1024x600 点阵 |
| 接口 | UART, RS232 , RS485 |
| IC或兼容IC | LT7689 |
| 显示与背景色 | 彩色 |
| 屏幕尺寸 | 7.0“ |
| 连接方式 | 同向双头PH2.0x4P端子线 |

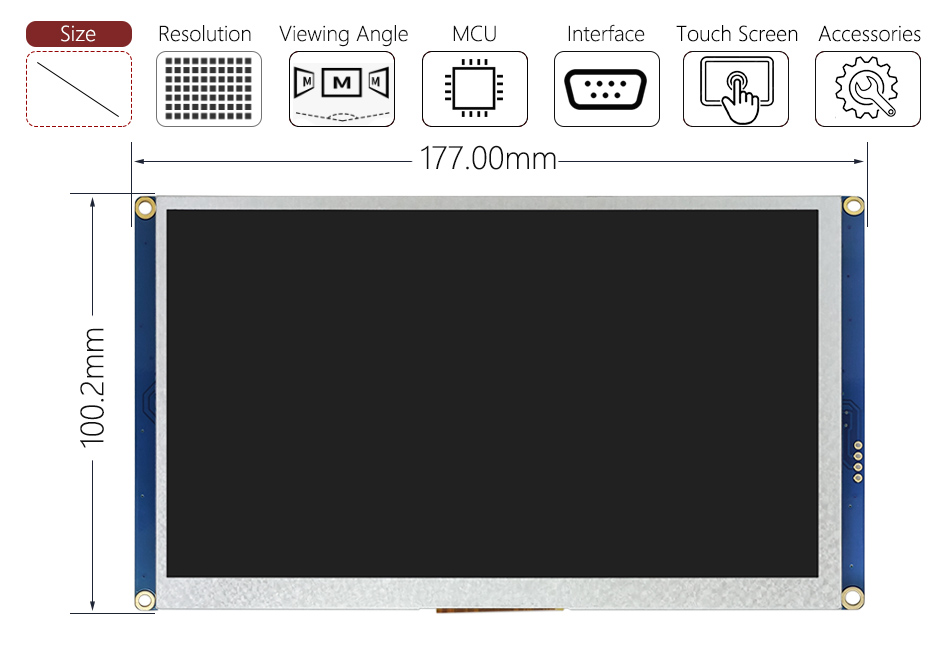

| 外形尺寸 | 177.00(W)x100.20(H)mm |
| 视域 | 156.56x88.51mm |
| 图形域尺寸 | 154.21(W)x85.92(H)mm |
| 点间距 | 0.150x0.143mm |
| IC封装方式 | SMT |
| 显示器类型 | TFT-LCD 彩色 |
| 可选配触摸屏 | 可选配 |
| 阳光下可视 | 不可视 |
| 对比度(典型值) | 800:1 |
| 色彩 | 65K |
| 最佳可视方向 | IPS |

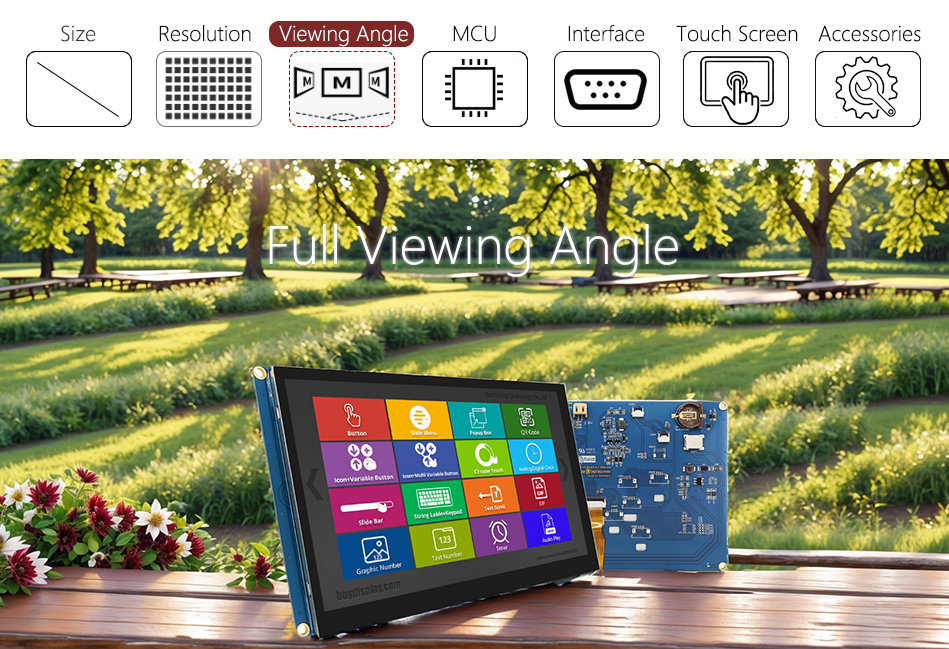

| 可视范围 | 左视角 80.0度, 右视角 80.0 度 上视角 80.0 度, 下视角 80.0 度 |
| 亮度(典型值) | 500cd/m2 |
| 背光颜色 | 白色 |
| 电源电压(典型值) | 5V |
| 模组的工作电流(最大值) | 750mA (Vdd=5V) |
| 工作温度 | -20℃~70℃ |
| 储藏温度 | -30℃~80℃ |
