0.42 inch Mini Color TFT LCD Display Module 96x54 IPS ST7735

Description

ER-TFT0.42-1 is 0.42-inch mini IPS TFT lcd display, featuring a sharp resolution of 96x54 pixels. With an impressive contrast ratio of 800:1, it excels in rendering deep blacks and vibrant colors, ensuring a visually striking experience.The IPS technology allows full viewing angle.its brightness level of 350cd/m2 ensures clear and vibrant visuals even in brightly lit environments. It is equipped with the ST7735P3 controller. It features a 4-wire SPI interface that ensures stable and efficient data transmission and a soldering type FPC that eliminates the need for an FPC connector, simplifying the installation process.

It's suitable for smartwatches, fitness trackers, and health monitoring devices in wearable technology and blood pressure monitors, glucose meters, and patient monitoring systems in medical technology.

For users of the 8051 microcontroller, we have carefully prepared a comprehensive interfacing document, demonstration code, and an 8051 development board specifically tailored for this display.

What's included in the package ?

Number	Standard Accessory Name	Quantity
1	0.42 inch 96x54 Pixels IPS TFT LCD Display	1



Datasheet for Display

Format	Documents Name	Language	Update Date	Size
	ER-TF0.42-1_Datasheet	English	Mar-26-2025	633K
	Controller ST7735P3_Datasheet	English	Aug-01-2021	3.5M



Tutorial - 8051 Microcontroller

Format	Documents Name	Language	Update Date	Size
	8051 Interfacing and Demo Code	English	Mar-29-2024	300K

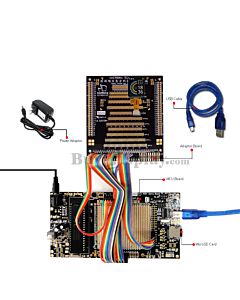

	8051 Microcontroller Development Board&Kit for ER-DBT0.42-1	N/A	N/A	N/A
