Character Display 8x2 LCD Module 3.3v Pinout,Arduino,Black on YG
- Buy 10 for US$3.25 each and save 3%
- Buy 30 for US$3.17 each and save 5%
- Buy 50 for US$3.09 each and save 7%
- Buy 100 for US$3.00 each and save 10%
- Buy 500 or more Quote Request
Shipping
Payment
Tax Info
Warranty
Return Policy
Continulty Supply
-
This Item:
Character Display 8x2 LCD Module 3.3v Pinout,Arduino,Black on YG
US$3.34
-
8051 Microcontroller Development Board for Character LCD ERC802-1
US$22.26
-
Total price
Description

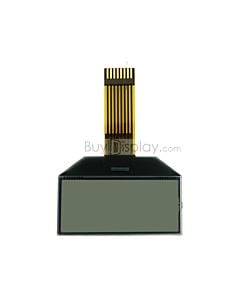

ERC802FYG-1 is 8 characters wide,2 row cog(chip on glass,no board) character lcd module,compact size,fpc connection,optional zif connector (fpc connector),ST7032i controller,i2c serial interface,single led backlight with yellow green color included can be dimmed easily with a resistor or PWM,fstn-lcd positive,black text on the yellow green color,high contrast,wide operating temperature range,wide view angle,rohs compliant,built in character set supports English/Japanese text, see the ST7032i datasheet for the full character set.
It's easily controlled by MCU such as 8051,PIC,AVR,ARDUINO,ARM and Raspberry Pi.It can be used in any embedded systems,industrial device,security,medical and hand-held equipment.
Of course, we wouldn't just leave you with a datasheet and a "good luck!".For 8051 microcontroller user,we prepared the detailed tutorial such as interfacing, demo code and Development Kit at the bottom of this page.
Datasheet for Character LCD Module,Controller IC,Connector
| Format | Documents Name | Version | Language | Update Date | Size |
|---|---|---|---|---|---|
 |
8x2 Character COG LCD Module Datasheet | 1.2 | English | Oct-18-2013 |
560K
|
|
Controller IC ST7032 Datasheet | 1.0 | English | Oct-17-2005 | 1.2M |
|
8 Pins 1.0mm Pitch ZIF Connector (FPC Connector) Datasheet | 1.0 | English | Jul-26-2012 | 317K |
Tutorial- 8051 Microcontroller
| Format | Documents Name | Version | Language | Update Date | Size |
|---|---|---|---|---|---|
 |
1.0 | English |
Jun-18-2009
|
7K | |
|
1.0 | English |
Jun-18-2009
|
7K | |
|
1.0 | English |
Jun-19-2009
|
127K | |
 |
N/A | N/A |
N/A
|
N/A |
| Gross Weight (kg) | 0.0090 |
|---|---|
| Manufacturer | EastRising |
| Continuity Supply | We promise the long term continuity supply for this product no less than 10 years since 2015. |
| Part Number | ERC802FYG-1 |
| Display Format | 8x2 Character |
| Interface | I2C |
| IC or Equivalent | ST7032i |
| Appearance | Black on Yellow Green |
| Connection | Plug-in FPC |
| Outline Dimension | 36.0(W)x23.5(H)x4.4(T)mm |
| Visual Area | 32.00x14.50mm |
| Active Area | 27.76(W)x11.49(H)mm |
| Dot (Pixel) Size | 0.545x0.645mm |
| Dot (Pixel) Pitch | 0.60x0.70mm |
| IC Package | COG |
| Display Type | FSTN-LCD Grey |
| Touch Panel Optional | No |
| Sunlight Readable | Yes |
| Viewing Direction | 6:00 |
| Backlight Color | Yellow Green Color |
| Backlight Current (Typ) | 15mA |
| Power Supply(Typ) | 3V, 5V |
| Supply Current for LCM(Max) | 300uA |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
