Bar Type 2.4 inch 480x640 IPS TFT LCD Display SPI+RGB Interface
- Buy 10 for US$7.58 each and save 3%
- Buy 30 for US$7.38 each and save 5%
- Buy 50 for US$7.17 each and save 8%
- Buy 100 for US$6.97 each and save 11%
- Buy 500 or more Quote Request
Shipping
Payment
Tax Info
Warranty
Return Policy
Continulty Supply
-
This Item:
Bar Type 2.4 inch 480x640 IPS TFT LCD Display SPI+RGB Interface
US$7.79
-
DUE R3 Board SAM3X8E 32-bit ARM Cortex-M3 for Arduino w/USB Cable
US$23.61
-
ATMEGA16U2 Board For Arduino Mega 2560 R3 Board 2012 Kit w/USB Cable
US$20.66
-
UNO R3 ATmega328P Development Board For Arduino Compatible+USB Cable
US$11.80
-
EANSDI 1GB TF Flash Memory Card Micro SD
US$4.83
-
Total price
Description
ER-TFT024-5 is 2.4 inch IPS TFT display, featuring a sharp resolution of 480x640 pixels. With an impressive contrast ratio of 1000:1, it excels in rendering deep blacks and vibrant colors, ensuring a visually striking experience. The IPS technology allows full viewing angle, It also has brightness of 350cd/m2.
ER-TFT024-5 is built-in ST7701S controller,3-wire SPI and the 18-bit RGB parallel interface are used in a sequence to communicate data to the display. The SPI interface is first used to initialize the display parameters through command registers. Once initialized, the display can receive data over the RGB parallel interface at a higher speed.
We've crafted an optional LT7680 controller board for seamless conversion of the ER-TFT024-5 to a 4-wire SPI interface. Additionally, our optional Arduino shield simplifies connectivity with Arduino boards like Due, Mega, and Uno, eliminating the need for wiring or soldering. No fuss – just plug and play! We've also provided a comprehensive Arduino library and examples for your convenience.
That is suitable for a wide range of applications, including industrial control systems, home automation and portable electronics.
What's included in the package ?
| Number | Standard Accessory Name | Quantity |
|---|---|---|
| 1 | 2.4 inch 480x640 Pixels TFT LCD Display | 1 |
Datasheet for Display
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
 |
ER-TFT024-5_Datasheet | English | Nov-01-2024 | 632K |
|
Controller ST7701S_Datasheet | English | Apr-09-2017 | 5.2M |
Datasheet for Controller Board
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
|
LT7680 Controller Board Outline | English | Jan-03-2024 | 254K |
|
Controller LT7680 Datasheet | English | Jul-10-2020 | 4.2M |
Datasheet for Arduino Shield
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
|
|
ER-AS-5517 Datasheet | English | Dec-14-2021 | 1.1M |
Tutorial- Arduino
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
 |
Arduino Library and Example | English | Nov-10-2024 | 2.5M |

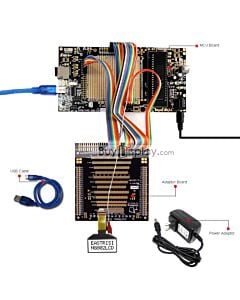

Tutorial - 8051 Microcontroller
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
|
|
Demo Code | English | Nov-10-2024 | 198K |
|
|
8051 Interfacing | English | Jan-26-2024 | 164K |
Tutorial - Initialization
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
|
|
Initialization Program | English | Nov-10-2024 | 2K |
| Gross Weight (kg) | 0.0230 |
|---|---|
| Manufacturer | EastRising |
| Continuity Supply | We promise the long term continuity supply for this product no less than 10 years since 2024. |
| Part Number | ER-TFT024-5 |
| Display Format | 480x640 Pixels |
| Interface | 3-wire SPI+18-bit RGB |
| IC or Equivalent | ST7701S |
| Appearance | RGB |
| Diagonal Size | 2.4” |
| Connection | Plug-in FPC |
| Outline Dimension | 42.62(W)x58.50(H)x2.2(T)mm |
| Visual Area | 37.72x49.96mm |
| Active Area | 36.72(W)x48.96(H)mm |
| Dot (Pixel) Pitch | 0.076x0.076mm |
| IC Package | COG |
| Display Type | TFT-LCD Color |
| Touch Panel Optional | No |
| Sunlight Readable | No |
| Contrast Ratio(Typ) | 1000:1 |
| Colors | 262K |
| Viewing Direction | IPS |
| Viewing Angle Range | Left:80.0 , Right:80.0 , Up:80.0 , Down:80.0 degree |
| Brightness(Typ) | 350cd/m2 |
| Backlight Color | White Color |
| Backlight Current (Typ) | 60mA |
| Power Supply(Typ) | 2.8V |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
