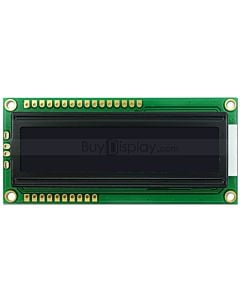

Arduino Serial 16x2 Features 1602 Character Display,ST7070 Controller
- Buy 10 for US$4.31 each and save 2%
- Buy 30 for US$4.19 each and save 5%
- Buy 50 for US$4.07 each and save 8%
- Buy 100 for US$3.96 each and save 10%
- Buy 500 or more Quote Request
Shipping
Payment
Tax Info
Warranty
Return Policy
Continulty Supply
-
This Item:
Arduino Serial 16x2 Features 1602 Character Display,ST7070 Controller
US$4.42
-
8051 Microcontroller Development Board for Character LCD ERM1602-5
US$44.75
-
Total price
Description
ERM1602SYG-5 is 16 characters wide,2 rows character lcd module,ST7070 controller (Industry-standard HD44780 compatible controller),6800 4/8-bit parallel+3/4-wire serial spi interface,single led backlight with yellow green color included can be dimmed easily with a resistor or PWM,stn-lcd positive,dark blue text on the yellow green color,wide operating temperature range,rohs compliant,built in character set supports English/Japanese text, see the ST7070 datasheet for the full character set. It's optional for pin header connection,5V or 3.3V power supply and I2C adapter board for arduino.
It's easily controlled by MCU such as 8051,PIC,AVR,ARDUINO,ARM and Raspberry Pi.It can be used in any embedded systems,industrial device,security,medical and hand-held equipment.
Of course, we wouldn't just leave you with a datasheet and a "good luck!".For 8051 microcontroller user,we prepared the detailed tutorial such as interfacing, demo code and Development Kit at the bottom of this page.
Datasheet for Character LCD Module,Controller IC,Adapter Board
| Format | Documents Name | Version | Language | Update Date | Size |
|---|---|---|---|---|---|
 |
16x2 Character LCD Module Datasheet | 1.1 | English | Mar-14-2015 |
439K
|
|
Controller IC ST7070 Datasheet | 1.4 | English | Apr-29-2009 | 456K |
|
Single Row I2C Adapter Board Drawing | 1.0 | English | Jul-17-2019 | 203K |
Tutorial - Arduino
| Format | Documents Name | Version | Language | Update Date | Size |
|---|---|---|---|---|---|
 |
Arduino Libraries and Examples for Character Display | 1.0 | English | Jul-23-2019 |
45K
|
|
Interfacing I2C Adapter Board to Arduino | 1.0 | English | Aug-12-2019 | 97K |
Tutorial- 8051 Microcontroller
| Format | Documents Name | Version | Language | Update Date | Size |
|---|---|---|---|---|---|
|
1.0 | English |
Dec-19-2018
|
6K | |
|
1.0 | English |
Dec-19-2018
|
5K | |
|
1.0 | English |
Dec-19-2018
|
5K | |
|
1.0 | English |
Dec-17-2015
|
342K | |
 |
N/A | N/A |
N/A
|
N/A |
| Gross Weight (kg) | 0.0500 |
|---|---|
| Manufacturer | EastRising |
| Continuity Supply | We promise the long term continuity supply for this product no less than 10 years since 2015. |
| Part Number | ERM1602SYG-5 |
| Display Format | 16x2 Character |
| Interface | 3-wire SPI, 4-wire SPI, 6800 4-bit Parallel , 6800 8-bit Parallel |
| IC or Equivalent | ST7070 |
| Appearance | Dark Blue on Yellow Green |
| Diagonal Size | 1.9“ |
| Connection | Pin Header |
| Outline Dimension | 80.0(W)x36.0(H)x11.0(T)mm |
| Visual Area | 64.50x14.50mm |
| Active Area | 55.70x11.00mm |
| Dot (Pixel) Size | 0.54x0.60mm |
| Dot (Pixel) Pitch | 0.59x0.65mm |
| IC Package | COB |
| Display Type | STN-LCD Yellow Green |
| Touch Panel Optional | No |
| Sunlight Readable | Yes |
| Viewing Direction | 6:00 |
| Backlight Color | Yellow Green Color |
| Backlight Current (Typ) | 15mA |
| Power Supply(Typ) | 3.3V, 5V |
| Supply Current for LCM(Max) | 500uA |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
