8 inch 800x600 LCD Display with RA8889 Controller Board,128M SDRAM Supports Smooth Video Even on Basic 8051 MCU
- Buy 10 for US$53.98 each and save 3%
- Buy 30 for US$52.52 each and save 5%
- Buy 50 for US$51.07 each and save 8%
- Buy 100 for US$49.61 each and save 11%
- Buy 500 or more Quote Request
Shipping
Payment
Tax Info
Warranty
Return Policy
Continulty Supply
-
This Item:
8 inch 800x600 LCD Display with RA8889 Controller Board,128M SDRAM Supports Smooth Video Even on Basic 8051 MCU
US$55.44
-
New WINBOND IC Chip FLASH 128M BIT W25Q128JV SOP8 Package
US$1.87
-
EANSDI 1GB TF Flash Memory Card Micro SD
US$4.83
-
Total price
Description
ER-TFT080-2-6105 is 8 inch TFT LCD display paired with 800x600 pixels and an RA8889 Controller Board. This controller board is notable for its low power consumption and integrated 128M SDRAM memory, enabling smooth video playback without lagging, even when interfaced with the simplest 8051 microcontroller. To ensure swift refreshing of screen content from the display memory, it supports a versatile range of interfaces, including 8080/6800 8-bit and 16-bit parallel, 3-wire, 4-wire, I2C SPI serial. Additionally, it boasts a built-in MicroSD card slot, making it optional microSD cards. Font chips and flash chips are also available.
ER-TFT080-2-6105 is loaded with powerful features such as multiple display buffers, Picture-in-Picture capability, transparency control, display rotation and mirroring, as well as built-in JPEG and AVI decoders. It offers flexibility in touch panel options, being compatible with both resistive and capacitive touch panels.
For Arduino enthusiasts, we provide an Arduino shield accessory that facilitates a quick and seamless connection between the ER-TFT080-2-6105 and the Arduino board. Recognizing the diverse connection requirements of our users, we offer two connection methods: FFC and pin header. To save you the hassle, we will prepare the connection for you, eliminating the need for manual assembly.
For users of 8051, we have also prepared corresponding sample programs that can be downloaded and used.
Lastly, the ER-TFT080-2-6105 offers an optional choice between 3.3V and 5V operation, further enhancing its versatility and compatibility with various systems and applications.
Datasheet for Display
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
 |
ER-TFT080-2-6105 Datasheet | English | Jan-13-2025 |
1.M
|
|
Controller IC RA8889 Datasheet | English | Jan-09-2025 | 4.9M |
Datasheet for Touch Panel
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
|
8 inch 4-Wire Resistive Touch Panel Outline Drawing | English | May-17-2019 | 285K |
|
Resistive Touch Panel Controller XPT2046 Datasheet | English | May-08-2007 | 579K |
|
8 inch Capacitive Touch Panel Outline Drawing | English | Dec-20-2022 | 251K |
|
Capacitive Touch Controller GT911 Datasheet | English | Mar-11-2015 | 1.6M |
Datasheet for Flash Memory,MicroSD Card Slot
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
|
128M-BIT Flash W25Q128FV Datasheet | English | Oct-01-2012 | 1.0M |
|
MicoSD Card Slot Drawing | English | Dec-12-2013 | 1.2M |
Datasheet for Font Chip
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
|
English |
May-08-2010
|
621K | |
|
English |
Mar-27-2014
|
2M | |
|
English |
Oct-01-2013
|
688K | |
|
English |
Apr-12-2013
|
935K |

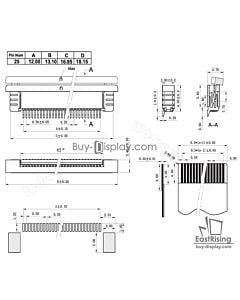

Datasheet for ZIF Connector
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
|
English |
Aug-07-2013
|
270K | |
|
English |
Aug-07-2013
|
266K | |
|
English |
Apr-19-2013
|
268K |
Tutorial - Arduino
It's better to use this program with the arduino shield provided by our company.
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
 |
ER-TFT080-2-6105 Arduino Library and Example | English | Jan-13-2025 | 127.3M |
Tutorial- 8051 MCU
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
|
English |
Jan-13-2025
|
745K |
| Gross Weight (kg) | 0.2970 |
|---|---|
| Manufacturer | EastRising |
| Continuity Supply | We promise the long term continuity supply for this product no less than 10 years since 2015. |
| Part Number | ER-TFT080-2-6105 |
| Display Format | 800x600 Pixels |
| Interface | I2C, 3-wire SPI, 4-wire SPI, 6800 8-bit Parallel , 6800 16-bit Parallel , 8080 8-bit Parallel , 8080 16-bit Parallel |
| IC or Equivalent | RA8889 |
| Appearance | RGB |
| Diagonal Size | 8.0“ |
| Connection | Pin Header, Plug-in FFC |
| Outline Dimension | 183.00(W)x141.00(H)mm |
| Visual Area | 164.80x124.30mm |
| Dot (Pixel) Size | 0.202(W)x0.202(H)mm |
| IC Package | SMT |
| Display Type | TFT-LCD Color |
| Touch Panel Optional | Yes |
| Sunlight Readable | No |
| Contrast Ratio(Typ) | 500:1 |
| Colors | 65K/262K/16.7M |
| Viewing Angle Range | Left:70.0 , Right:70.0 , Up:50.0 , Down:70.0 degree |
| Brightness(Typ) | 420cd/m2 |
| Backlight Color | White Color |
| Power Supply(Typ) | 3.3V, 5V |
| Supply Current for LCM(Max) | 950mA ( VDD=3.3V) / 600mA ( VDD=5.0V) |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
