7"TFT LCD Touch Screen Display Module 800x480 for MP4,GPS,Tablet PC
- Buy 10 for US$16.98 each and save 2%
- Buy 30 for US$16.52 each and save 5%
- Buy 50 for US$16.07 each and save 8%
- Buy 100 for US$15.61 each and save 10%
- Buy 500 or more Quote Request
Shipping
Payment
Tax Info
Warranty
Return Policy
Continulty Supply
-
This Item:
7"TFT LCD Touch Screen Display Module 800x480 for MP4,GPS,Tablet PC
US$17.40
-
8051 Microcontroller/MCU Development Board for TFT LCD ER-TFT070A2-4
US$46.76
-
Total price
Description

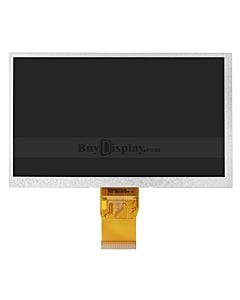

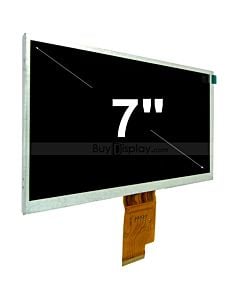

ER-TFT070A2-4 is the updated part number of ER-TFT070-4. It's 800x480 dots 7" color tft lcd module display with ILI6122 driver ic,optional capacitive touch panel with controller and connector,optional 4-wire resistive touch panel screen with connector,superior display quality,super wide view angle and easily controlled by MCU such as 8051, PIC, AVR, ARDUINO, ARM and Raspberry PI.Equivalent with AT070TN90,AT070TN92.
It can be used in any embedded systems,car,mp4,gps,industrial device,security and hand-held equipment which requires display in high quality and colorful image.It supports rgb interface. FPC with zif connector is easily to assemble or remove.
Of course, we wouldn't just leave you with a datasheet and a "good luck!".Here is the link for 7"TFT Touch Shield with Libraries, Examples.Schematic Diagram for Arduino Due,Mega 2560,Uno and 8051 Microcontroller Development Board&Kit.
The LED backlight driver IC we suggest to use for this display is PT4110.
What's included in the package ?
| Number | Standard Accessory Name | Quantity |
|---|---|---|
| 1 | 7 inch 800x480 pixels TFT LCD Display | 1 |
Datasheet for TFT LCD Display,Controller,Connector
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
 |
ER-TFT070A2-4_Datasheet | English |
Apr-12-2020 |
1.02M |
 |
ER-TFT070A2-4_3D Model | English | Sep-09-2023 | 300K |
|
Driver IC (ILI6122) Datasheet | English | Apr-09-2009 | 380K |
|
40 Pins 0.50mm Pitch FPC Connector Drawing | English | Jul-26-2012 | 272K |
Datasheet for Touch Panel,Connector
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
|
|
7 inch Resistive Touch Panel Soldering FPC Datasheet | English | Dec-12-2016 | 305K |
|
|

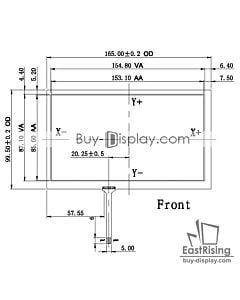

7 inch 4-Wire Resistive Touch Panel Datasheet | English | Feb-02-2013 | 247K |
|
|
4 Pins 1.0mm Pitch ZIF Connector Drawing for Touch Panel | English | Jul-26-2012 | 268K |
|
|

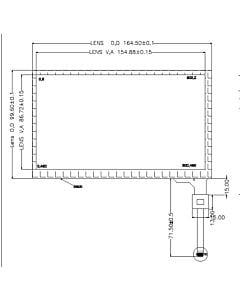

7 inch Capacitive Touch Panel with Controller Outline Drawing | English | Aug-10-2015 | 190K |
|
|
10 Pins 0.5mm Pitch ZIF Connector Drawing for Touch Panel | English | Mar-03-2013 | 148K |
| Gross Weight (kg) | 0.2360 |
|---|---|
| Manufacturer | EastRising |
| Continuity Supply | We promise the long term continuity supply for this product no less than 10 years since 2013. |
| Part Number | ER-TFT070A2-4 |
| Display Format | 800x480 Pixels |
| Interface | RGB |
| IC or Equivalent | ILI6122 |
| Appearance | RGB |
| Diagonal Size | 7.0“ |
| Connection | Plug-in FPC |
| Outline Dimension | 164.9(W)x100.0(H)x3.4(T)mm |
| Visual Area | 156.72x88.99mm |
| Active Area | 154.08(W)x85.92(H)mm |
| Dot (Pixel) Pitch | 0.1926(W)x0.179(H) |
| IC Package | COG |
| Display Type | TFT-LCD Color |
| Touch Panel Optional | Yes |
| Sunlight Readable | No |
| Contrast Ratio(Typ) | 500:1 |
| Colors | 65K/262K/16.7M |
| Viewing Angle Range | Left:60.0 , Right:60.0 , Up:60.0 , Down:60.0 degree |
| Brightness(Typ) | 200cd/m2 |
| Backlight Color | White Color |
| Power Supply(Typ) | 3.3V |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
-
Shawn Lewis
2024-08-13 21:23:01
How do I power the capacitive display? Which VDD and GND pins do I use?
1 answer-
Janice Lee
2024-08-14 07:17:23
Dear Customer,
You need to power the TFT display and touch panel seperately.
> TFT display
pin3_GND, pin4_VDD, pin29_GND,pin36_GND are need to be connected.
> Capacitive Touch Panel
pin1_GND, pin7_VDD, pin8_VDD, pin9_GND, pin10_GND are need to be connected.
Pls check the datasheet for the details.
Any problems, pls make me know.
-
-
Janne Wils Larsen
2020-06-09 07:11:05
Does capacitive touch display always come with black frame exactly like the picture shows?
1 people had same question.1 answer-
Sajay Peng
2020-06-09 08:54:16
Yes, I confirm ER-TPC070-6 capacitive touch display used on ER-TFT070A2-4 TFT Display will always come with black frame exactly like the picture shows, Thanks.
-
