IPS 7 inch Capacitive Touch IPS Display 800x480 MIPI DSI Interface for Raspberry Pi
- Buy 10 for US$41.93 each and save 3%
- Buy 30 for US$40.57 each and save 6%
- Buy 50 for US$39.22 each and save 9%
- Buy 100 for US$37.87 each and save 13%
- Buy 500 or more Quote Request
Shipping
Payment
Tax Info
Warranty
Return Policy
Continulty Supply
Description
ER-TFTV070A3-1 is a ips 7 inch high-quality screen designed to work with the Raspberry Pi. It features a 800x480 resolution, which provides sharp and clear images. The capacitive touch technology allows for precise and responsive touch input, making it ideal for use in applications such as gaming, multimedia, and industrial control.
The display uses a DSI (Display Serial Interface) interface to connect with the Raspberry Pi, providing fast and reliable data transfer. It also features PWM (Pulse Width Modulation) for brightness adjustment, allowing you to adjust the display's brightness to suit your preferences and environment.
Overall, this 7 inch capacitive touch IPS display is a great choice for anyone looking to enhance the visual experience of their Raspberry Pi projects.

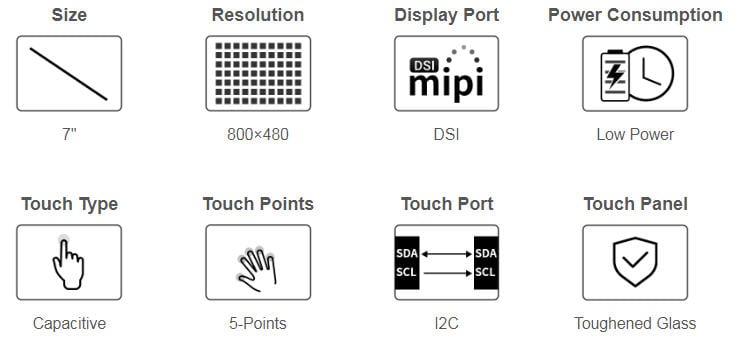

Feature
Support
Raspberry Pi
Supports Raspbian, 5-points touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free
Wide Viewing Angle
Capacitive Touch

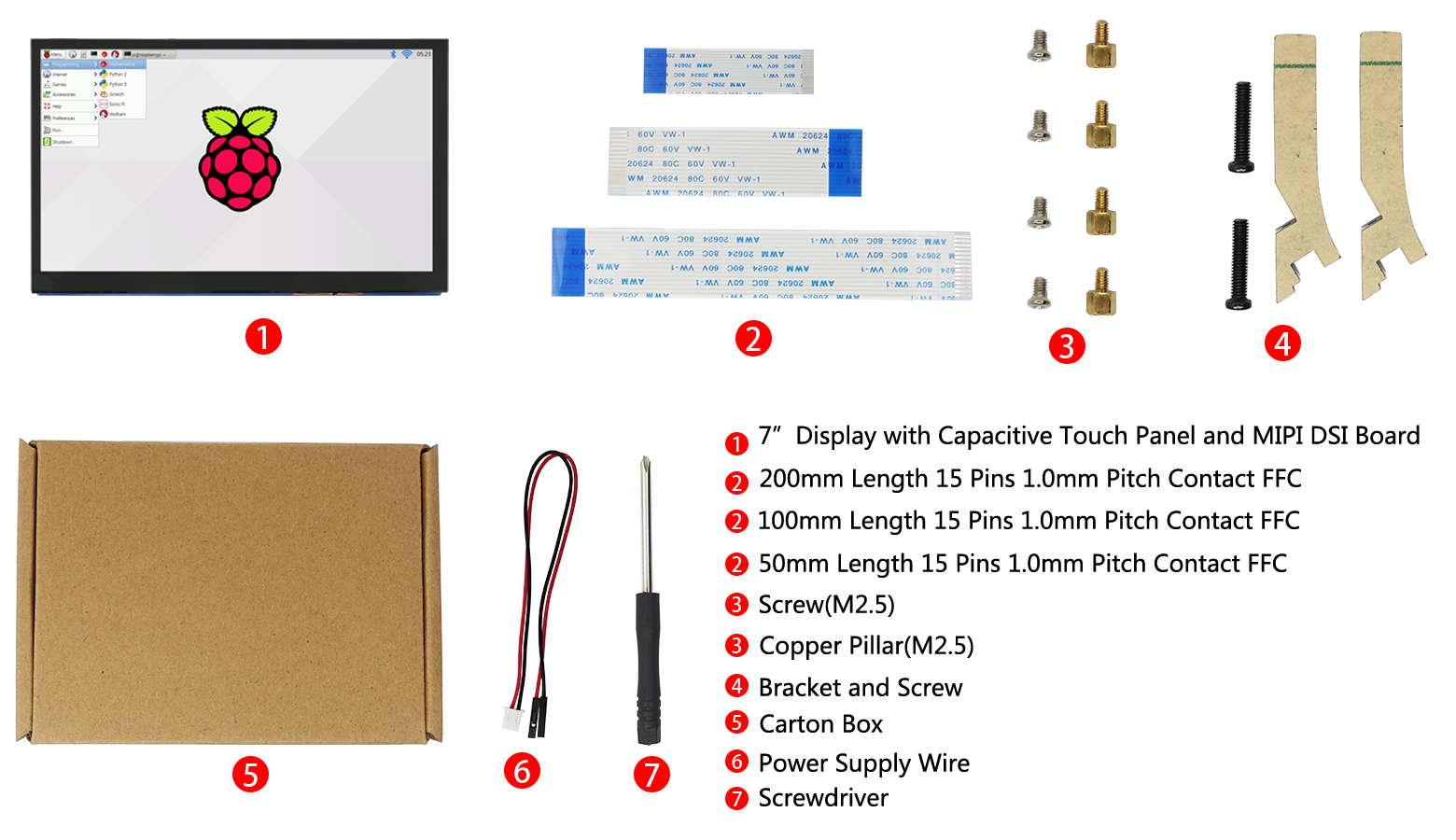

What's included in the package?
Datasheet
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
 |
ER-TFTV070A3-1_Datasheet | English |
Apr-01-2023 |
717K |
 |
ER-TFTV070A3-1_3D Model | English |
Jul-16-2024 |
4.1M |
| Gross Weight (kg) | 0.3750 |
|---|---|
| Manufacturer | EastRising |
| Continuity Supply | We promise the long term continuity supply for this product no less than 10 years since 2023. |
| Part Number | ER-TFTV070A3-1 |
| Display Format | 800x480 Pixels |
| Interface | DSI |
| IC or Equivalent | N/A |
| Appearance | RGB |
| Diagonal Size | 7.0“ |
| Connection | Plug-in FFC |
| Outline Dimension | 164.90(W)x102.00(H)x15.0(T)mm |
| Visual Area | 155.00x87.70mm |
| Active Area | 154.08(W)x85.92(H) |
| Dot (Pixel) Pitch | 0.118(W)x0.112(H)mm |
| IC Package | SMT |
| Display Type | TFT-LCD Color |
| Touch Panel Optional | Yes |
| Sunlight Readable | No |
| Contrast Ratio(Typ) | 1000:1 |
| Colors | 16.7M |
| Viewing Direction | IPS |
| Viewing Angle Range | Left:80.0 , Right:80.0 , Up:80.0 , Down:80.0 degree |
| Brightness(Typ) | 300cd/m2 |
| Backlight Color | White Color |
| Power Supply(Typ) | 3.3V |
| Supply Current for LCM(Max) | 340mA |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
