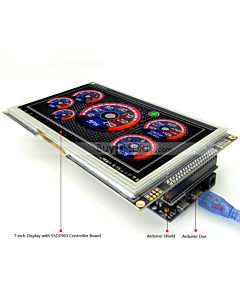

7 inch 1024x600 TFT Arduino Shield Optional Capacitive Touch Screen

Description

Spice up your Arduino project with a beautiful large touchscreen display shield with built in microSD card connection. This TFT display is big (7" diagonal) bright (18 white-LED backlight) and colorfu 1024x600 pixels with individual pixel control. As a bonus, this display has a optional capacitive touch panel attached on screen by default.

The shield is fully assembled, tested and ready to go. No wiring, no soldering! Simply plug it in and load up our library - you'll have it running in under 10 minutes! Works best with any classic Arduino (UNO/Due/Mega 2560).
This display shield has a controller built into it with RAM buffering, so that almost no work is done by the microcontroller. You can connect more sensors, buttons and LEDs.

Of course, we wouldn't just leave you with a datasheet and a "good luck!" - we've written a full open source graphics library at the bottom of this page for Arduino Due only that can draw pixels, lines, rectangles, circles and text. We also have a touch screen library that detects x,y and z (pressure) and example code to demonstrate all of it. The code is written for Arduino but can be easily ported to your favorite microcontroller!

For 7 inch screen,the high current is needed.But the current of arduino uno or arduino mega board is low, an external 5V power supply is needed. Refer to the image shows the external power supply position on shield ER-AS-RA8875.

For people who want the same screen but not in a shield, check out our 7" TFT breakout.

What's included in the package ?

Number	Standard Accessory Name	Quantity
1	7 inch TFT LCD Display with RA8876 or LT7683 Controller Board	1
2	Arduino Shield	1

*The default power supply is 5V and the default interface is 4-wire serial interface.



Compatible with following Arduino Boards

Board Name	MCU	I/O
Arduino MEGA2560	ATMEGA2560	54
Arduino MEGA1280	ATMEGA1280	54
Arduino Due	AT91SAM3X8EA	54
Arduino Uno	ATMEGA328	14



Attention

If you've had a lot of Arduino DUEs go through your hands (or if you are just unlucky), chances are you’ve come across at least one that does not start-up properly.The symptom is simple: you power up the Arduino but it doesn’t appear to “boot”. Your code simply doesn't start running.You might have noticed that resetting the board (by pressing the reset button) causes the board to start-up normally.The fix is simple,here is the solution.



Datasheet for Display Module

Format	Documents Name	Language	Update Date	Size
	ER-TFTM070-6 Datasheet	English	Oct-30-2021	1.5M
	Controller LT7683 Datasheet	English	Jul-10-2020	4.8M
	Controller IC RA8876 Datasheet	English	Aug-11-2015	4.7M



Datasheet and Schematic for Arduino Shield

Format	Documents Name	Language	Update Date	Size
	ER-AS-RA8875 Datasheet	English	Mar-08-2016	767K
	ER-AS-RA8875 Arduino Schematic Diagram	English	Aug-08-2019	252K



Datasheet for Touch Controller

Format	Documents Name	Language	Update Date	Size
	7 inch Capacitive Touch Panel Outline Drawing	English	Aug-10-2015	148K

Tutorial - Arduino Due Libraries,Examples

Format	Documents Name	Language	Update Date	Size
	Libraries+Examples for SPI 7" Arduino Shield	English	Dec-27-2023	34M
