6.5" Color Bar TFT LCD IoT Display 800x320 Pixels w/OPTL Touch Sceen
- Buy 10 for US$25.78 each and save 2%
- Buy 30 for US$25.07 each and save 5%
- Buy 50 for US$24.39 each and save 8%
- Buy 100 for US$23.69 each and save 10%
- Buy 500 or more Quote Request
Shipping
Payment
Tax Info
Warranty
Return Policy
Continulty Supply
-
This Item:
6.5" Color Bar TFT LCD IoT Display 800x320 Pixels w/OPTL Touch Sceen
US$26.41
-
8051 Microcontroller/MCU Development Board for TFT LCD ER-TFT065-1
US$55.12
-
Total price
Description

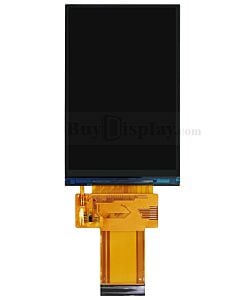

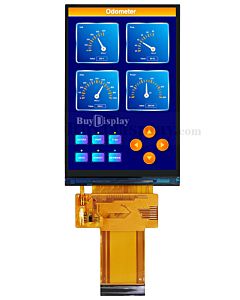

ER-TFT065-1 is 800x320 dots 6.5"color bar tft lcd display with EK9713 driver ic and optional 4-wire resistive touch panel and capacitive touch panel with Controller, superior display quality,super wide view angle and easily controlled by MCU such as 8051, PIC, AVR, ARDUINO, ARM and Raspberry PI.
It can be used in any embedded systems,car,IoT devices,mp4,gps,industrial device,security and hand-held equipment which requires display in high quality and colorful image.It supports rgb interface. FPC with zif connector is easily to assemble or remove.Of course, we wouldn't just leave you with a datasheet and a "good luck!".Here is the link 8051 Microcontroller Development Board&Kit.
The LED backlight driver IC we suggest to use for this display is PT4110.
What's included in the package ?
| Number | Standard Accessory Name | Quantity |
|---|---|---|
| 1 | 6.5 inch 800x320 pixels TFT LCD Display | 1 |
Datasheet for TFT LCD Display,Controller,Connector
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
 |
ER-TFT065-1_Datasheet | English |
Jul-07-2023 |
952K |
 |
ER-TFT065-1_3D Model | English | Sep-09-2023 | 309K |
|
Driver IC (EK9713) Datasheet | English | Jul-07-2010 | 2.1M |
|
50 Pins 0.50mm Pitch FPC Connector Drawing | English | Jul-26-2012 | 272K |
Datasheet for Touch Panel,Connector
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
|
|
6.5 inch 4-Wire Resistive Touch Panel Datasheet | English | May-17-2019 | 370K |
|
|
4 Pins 1.0mm Pitch ZIF Connector (FPC Connector) Datasheet | English | Jul-12-2014 | 179K |
|
|
6.5 inch Capacitive Touch Panel with Controller Outline | English | Jul-07-2023 | 266K |
|
|
Capacitive Touch Controller GT911_Datasheet | English | Mar-11-2015 | 1.6M |
|
|
6 Pins 0.5mm Pitch ZIF Connector Drawing for Touch Panel | English | Jun-10-2014 | 272K |
| Gross Weight (kg) | 0.1200 |
|---|---|
| Manufacturer | EastRising |
| Continuity Supply | We promise the long term continuity supply for this product no less than 10 years since 2019. |
| Part Number | ER-TFT065-1 |
| Display Format | 800x320 Pixels |
| Interface | RGB |
| IC or Equivalent | EK9713 |
| Appearance | RGB |
| Diagonal Size | 6.5“ |
| Connection | Plug-in FPC |
| Outline Dimension | 165.00(W)x72.86(H)x3.5(T)mm |
| Visual Area | 156.70x60.66mm |
| Active Area | 154.08(W)x57.28(H)mm |
| Dot (Pixel) Size | 0.1925(W)x0.1789(H)mm |
| IC Package | COG |
| Display Type | TFT-LCD Color |
| Touch Panel Optional | Yes |
| Sunlight Readable | No |
| Contrast Ratio(Typ) | 500:1 |
| Colors | 65K/262K/16.7M |
| Viewing Angle Range | Left:75.0 , Right:75.0 , Up:75.0 , Down:70.0 degree |
| Brightness(Typ) | 500cd/m2 |
| Backlight Color | White Color |
| Power Supply(Typ) | 3.3V |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
-
Brendan Hoskins
2023-11-06 23:22:53
What is the minimum and maximum sustained brightness of this display? What is the typical brightness rating of this display? The datasheet says one thing while the specifications tab on the website says another thing.
What is the total power consumption of this display in watts? Please provide the operating conditions this power consumption was measured with.1 answer-
Sajay Peng
2023-11-07 01:53:38
Hi Brendan,
I'm sorry I don't know what you mean, Do you mean there is a conflict between datasheet and description on website?
Pls regard the info indicated in datasheet page 12 as correct version https://www.buydisplay.com/download/manual/ER-TFT065-1_Datasheet.pdf
Brightness changes when different current apply, DVDD:3.3V 3mA AVDD 10.4V 17mA VGL:-7V 300uA VGH:16V 200uA VCOM:3.6V-4.4 20uA
Thanks.
-
