4.3"TFT LCD Display Module Controller Board w/Serial SPI,I2C,MCU
- Buy 10 for US$34.10 each and save 2%
- Buy 30 for US$33.23 each and save 5%
- Buy 50 for US$32.35 each and save 7%
- Buy 100 for US$31.48 each and save 10%
- Buy 500 or more Quote Request
Shipping
Payment
Tax Info
Warranty
Return Policy
Continulty Supply
-
This Item:
4.3"TFT LCD Display Module Controller Board w/Serial SPI,I2C,MCU
US$34.97
-
New WINBOND IC Chip FLASH 128M BIT W25Q128JV SOP8 Package
US$1.87
-
EANSDI 1GB TF Flash Memory Card Micro SD
US$4.83
-
Total price
Description
ER-TFTM043-3 is 480x272 dots 4.3" color tft lcd module display with RA8875 controller board,superior display quality,super wide viewing angle and easily controlled by MCU such as 8051, PIC, AVR, ARDUINO,and ARM .It can be used in any embedded systems,industrial device,security and hand-held equipment which requires display in high quality and colorful image.

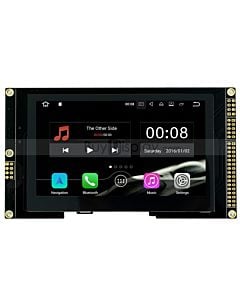

It supports 8080 6800 8-bit,16-bit parallel,3-wire,4-wire,I2C serial spi interface.Built-in MicroSD card slot. It's optional for 4-wire resistive touch panel (IC RA8875 built-in touch controller) and 4.3 inch capacitive touch panel with controller,font chip, flash chip and microsd card. We offer two types connection,one is pinheader and the another is ZIF connector with flat cable mounting on board by default and suggested. There is no capacitive touch panel connection on the board of ER-TFTM043-3,its capacitive touch panel needs to be connected with your external board.Now we design another new board with capacitive touch connection named_ER-TFTM043A2-3-4170.

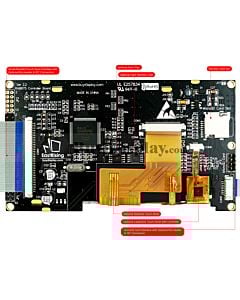

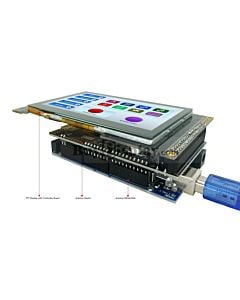

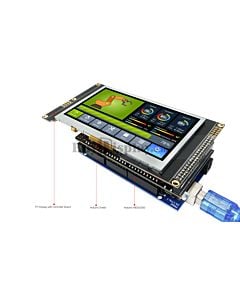

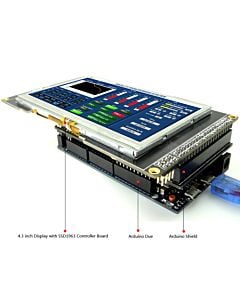

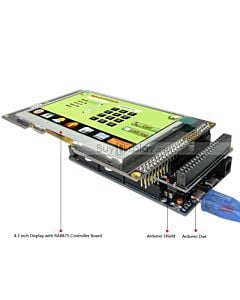

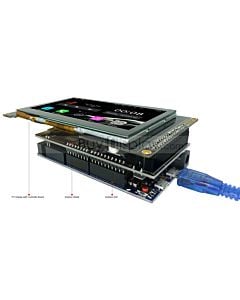

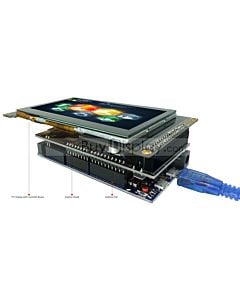

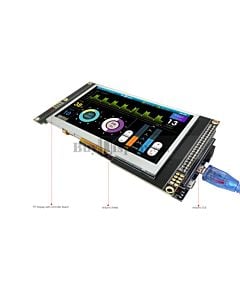

Of course, we wouldn't just leave you with a datasheet and a "good luck!".Here is the link for 4.3"TFT Touch Shield with Libraries, Examples.Schematic Diagram for Arduino Due,Mega 2560 and Uno . For 8051 microcontroller user,we prepared the detailed tutorial such as interfacing, demo code and development kit at the bottom of this page.
Datasheet for TFT LCD Module,Controller
| Format | Documents Name | Version | Language | Update Date | Size |
|---|---|---|---|---|---|
 |
4.3"480x272 Display with RA8875 Controller Board Datasheet | 2.0 | English |
Jul-04-2015 |
1.1M |
 |
ER-TFTM043-3_3D Model | 1.0 | English | Jun-16-2024 | 4.2M |
|
Controller IC RA8875 Datasheet | 1.0 | English | Jul-31-2013 | 4.3M |
Datasheet for Touch Panel,Controller
| Format | Documents Name | Version | Language | Update Date | Size |
|---|---|---|---|---|---|
|
|
4.3 inch Resisitve Touch Panel Outline Drawing | 1.0 | English | May-13-2013 | 434K |
|
|
4.3 inch Capacitive Touch Panel Outline Drawing | 1.0 | English | Apr-21-2014 | 190K |
|
|
Capacitive Touch Controller FT5206 Datasheet | 1.0 | English | Dec-20-2010 | 751K |
Datasheet for Flash Memory,MicroSD Card Slot
| Format | Documents Name | Version | Language | Update Date | Size |
|---|---|---|---|---|---|
|
|
128M-BIT Flash W25Q128JV Datasheet | 1.0 | English | Mar-27-2018 | 1.07M |
|
|
MicoSD Card Slot Drawing | 1.0 | English | Mar-28-2012 |
307K |
Datasheet for Font Chip
| Format | Documents Name | Version | Language | Update Date | Size |
|---|---|---|---|---|---|
|
|
ER3300-1 Datasheet | 1.0 | English | May-08-2010 | 621K |
|
|
ER3301-1 Datasheet | 1.0 | English | Jan-27-2014 | 2.0M |
|
|
ER3303-1 Datasheet | 1.0 | English |
Jul-01-2013
|
688K |
|
|
ER3304-1 Datasheet | 1.0 | English |
Apr-01-2013
|
935K |
Datasheet for ZIF Connector
| Format | Documents Name | Version | Language | Update Date | Size |
|---|---|---|---|---|---|
|
|
8 Pins 1.00mm Pitch ZIF Connector Drawing | 1.0 | English | Aug-07-2013 | 270K |
|
|
30 Pins 1.00mm Pitch ZIF Connector Drawing | 1.0 | English | Aug-07-2013 | 274K |
Tutorial - 8051 Microcontroller Demo Code
| Format | Documents Name | Version | Language | Update Date | Size |
|---|---|---|---|---|---|
 |
3-wire SPI Interface DemoCode | 1.0 | English | Aug-23-2013 | 197K |
|
|
4-wire_SPI Interface_Demo Code | 1.0 | English | Aug-23-2013 | 197K |
|
|
8080 8-bit Parallel Interface Demo Code | 1.0 | English | Aug-23-2013 | 197K |
|
|
8080 16-bit Parallel Interface Demo Code | 1.0 | English | Aug-23-2013 | 197K |
|
|
I2C_Interface Demo Code | 1.0 | English | Aug-23-2013 | 197K |
|
|
8080 16-bit Parallel Interface+MicroSD Demo Code | 1.0 | English | Oct-15-2014 | 2.2M |
|
|
ER-TFTM043-3 Interfacing Document | 1.0 | English | Aug-05-2013 | 482K |
 |
8051 Microcontroller Development Board for ER-TFTM043-3 | N/A | N/A | N/A | N/A |
| Gross Weight (kg) | 0.1520 |
|---|---|
| Manufacturer | EastRising |
| Continuity Supply | We promise the long term continuity supply for this product no less than 10 years since 2015. |
| Part Number | ER-TFTM043-3 |
| Display Format | 480x272 Pixels |
| Interface | I2C, 3-wire SPI, 4-wire SPI, 6800 8-bit Parallel , 6800 16-bit Parallel , 8080 8-bit Parallel , 8080 16-bit Parallel |
| IC or Equivalent | RA8875 |
| Appearance | RGB |
| Diagonal Size | 4.3” |
| Connection | Pin Header, Plug-in FFC |
| Outline Dimension | 132.70W)x75.8(H)mm |
| Visual Area | 97.90x56.65mm |
| Active Area | 95.04(W)x53.85(H)mm |
| Dot (Pixel) Size | 0.198(W)x0.198(H)mm |
| IC Package | SMT |
| Display Type | TFT-LCD Color |
| Touch Panel Optional | Yes |
| Sunlight Readable | No |
| Contrast Ratio(Typ) | 400:1 |
| Colors | 65K |
| Viewing Angle Range | Left:70.0 , Right:70.0 , Up:50.0 , Down:50.0 degree |
| Brightness(Typ) | 350cd/m2 |
| Backlight Color | White Color |
| Power Supply(Typ) | 3.3V, 5V |
| Supply Current for LCM(Max) | 230mA (Vdd=3.3V) 180mA (Vdd=5.0V) |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
