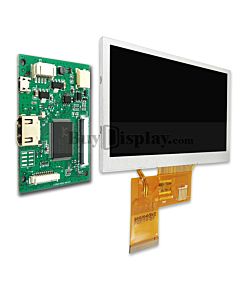

4.3 inch 800x480 TFT LCD Display with HDMI VGA,Video AV Driver Board
- Buy 10 for US$25.93 each and save 3%
- Buy 30 for US$25.19 each and save 5%
- Buy 50 for US$24.53 each and save 8%
- Buy 100 for US$23.83 each and save 11%
- Buy 500 or more Quote Request
Shipping
Payment
Tax Info
Warranty
Return Policy
Continulty Supply
-
This Item:
4.3 inch 800x480 TFT LCD Display with HDMI VGA,Video AV Driver Board
US$26.63
-
AC100-240V To DC 12V 2A Power Supply Adapter for TFT Driving Board
US$3.11
-
Total price
Attention
All the accessories listed below tier pricing need to pay.We won't deliver until you select. Power adaptor should be 12V/2000mA in output and center pin for positive voltage and the outer shield for negative voltage.The temperature for controller RTD2660 would increase during working.That's normal phenomenon,not quality problem.
When lose signal,the screen is blue or black that is available in the menu setting.There is no snowy screen or white noise in setting menu.
Description
ER-TFTV043-7 is 800x480 dots 4.3" color tft lcd module display full viewing angle with hdmi,vga,video,av signal driver board,optional 4-wire resistive touch panel with USB driver board and cable, optional capacitive touch panel with USB controller board and cable, optional remote control,superior display quality,super wide view angle.It can be used in any embedded systems,car,industrial device,security and hand-held equipment which requires display in high quality and colorful video. It's also ideal for Raspberry Pi by HDMI.
What's included in the package ?
| Number | Standard Accessory Name | Qty |
|---|---|---|
| 1 | 4.3 inch TFT LCD 800x480 Pixels Display | 1 |
| 2 | HDMI+Video+VGA Driver Board | 1 |
| 3 | Keyboard Cable with Terminal | 1 |
| 4 | 50 to 40 Pins Adaptor Board | 1 |
Datasheet for TFT LCD Display
| Format | Documents Name | Version | Language | Update Date | Size |
|---|---|---|---|---|---|
 |
4.3 inch TFT LCD with HDMI Video VGA Driver Board Datasheet | 1.0 | English | Oct-15-2018 |
818K
|
Datasheet for Capacitive Touch Panel and USB Controller Board
| Format | Documents Name | Version | Language | Update Date | Size |
|---|---|---|---|---|---|
|
ER-TPC043-3-USB Outline Drawing | 1.0 | English | Jun-04-2018 |
279K
|
Datasheet for Resistive Touch Panel and USB Controller Board
| Format | Documents Name | Version | Language | Update Date | Size |
|---|---|---|---|---|---|
|
1.0 | English |
Mar-02-2013
|
180K | |
|
1.0 | English |
Jun-19-2013
|
190K | |
 |
1.0 | English |
Jul-08-2013
|
56M |
| Gross Weight (kg) | 0.2770 |
|---|---|
| Manufacturer | EastRising |
| Continuity Supply | We promise the long term continuity supply for this product no less than 10 years since 2018. |
| Part Number | ER-TFTV043-7 |
| Display Format | 800x480 Pixels |
| Interface | HDMI, Video(CVBS), VGA |
| IC or Equivalent | HX8264 |
| Appearance | RGB |
| Diagonal Size | 4.3” |
| Connection | Plug-in FPC |
| Outline Dimension | 105.4(W)x67.07(H)X2.9(T)mm |
| Visual Area | 97.22x56.40mm |
| Active Area | 95.04(W)x53.86(H)mm |
| Dot (Pixel) Pitch | 0.1188(W)x0.1122(H)mm |
| IC Package | COG |
| Display Type | TFT-LCD Color |
| Touch Panel Optional | Yes |
| Sunlight Readable | No |
| Contrast Ratio(Typ) | 500:1 |
| Colors | 65K/262K/16.7M |
| Viewing Angle Range | Left:80.0 , Right:80.0 , Up:80.0 , Down:80.0 degree |
| Brightness(Typ) | 350cd/m2 |
| Backlight Color | White Color |
| Backlight Current (Typ) | 15mA |
| Power Supply(Typ) | 12V |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
