3.3V or 5V Blue LCD 24x2 Arduino Library Character Display Module
- Buy 10 for US$4.59 each and save 3%
- Buy 30 for US$4.46 each and save 6%
- Buy 50 for US$4.33 each and save 8%
- Buy 100 for US$4.20 each and save 11%
- Buy 500 or more Quote Request
Shipping
Payment
Tax Info
Warranty
Return Policy
Continulty Supply
-
This Item:
3.3V or 5V Blue LCD 24x2 Arduino Library Character Display Module
US$4.72
-
8051 Microcontroller Development Board for Character LCD ERM2402-1
US$44.75
-
Total price
Description

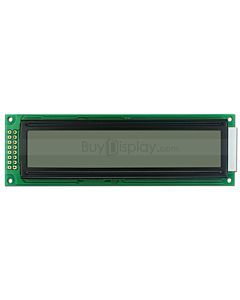

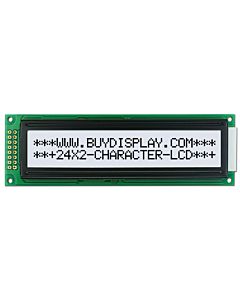

ERM2402SBS-1 is 24 characters wide,2 rows character lcd module,SPLC780C controller (Industry-standard HD44780 compatible controller),6800 4/8-bit parallel interface,single led backlight with white color included can be dimmed easily with a resistor or PWM,stn- blue lcd negative,white text on the blue color,wide operating temperature range,rohs compliant,built in character set supports English/Japanese text, see the SPLC780C datasheet for the full character set. It's optional for pin header connection,5V or 3.3V power supply and I2C adapter board for arduino.
It's easily controlled by MCU such as 8051,PIC,AVR,ARDUINO,ARM and Raspberry Pi.It can be used in any embedded systems,industrial device,security,medical and hand-held equipment.
Of course, we wouldn't just leave you with a datasheet and a "good luck!".For 8051 microcontroller user,we prepared the detailed tutorial such as interfacing, demo code and Development Kit at the bottom of this page.
Datasheet for Character LCD Module,Controller IC,Adapter Board
| Format | Documents Name | Version | Language | Update Date | Size |
|---|---|---|---|---|---|
 |
24x2 Character LCD Module Datasheet | 1.0 | English | Jul-20-2012 |
368K
|
|
Controller IC SPLC780C Datasheet | 1.1 | English | Jul-09-2002 | 813K |
|
Double Row I2C Adapter Board Drawing | 1.0 | English | Jul-17-2019 | 224K |
Tutorial - Arduino
| Format | Documents Name | Version | Language | Update Date | Size |
|---|---|---|---|---|---|
 |
Arduino Libraries and Examples for Character Display | 1.0 | English | Jul-23-2019 |
45K
|
|
Interfacing I2C Adapter Board to Arduino | 1.0 | English | Aug-12-2019 | 97K |
Tutorial- 8051 Microcontroller
| Format | Documents Name | Version | Language | Update Date | Size |
|---|---|---|---|---|---|
|
1.0 | English |
Jun-18-2009
|
5K | |
|
1.0 | English |
Mar-30-2016
|
313K | |
 |
N/A | N/A |
N/A
|
N/A |
| Gross Weight (kg) | 0.0750 |
|---|---|
| Manufacturer | EastRising |
| Continuity Supply | We promise the long term continuity supply for this product no less than 10 years since 2015. |
| Part Number | ERM2402SBS-1 |
| Display Format | 24x2 Character |
| Interface | 6800 4-bit Parallel , 6800 8-bit Parallel |
| IC or Equivalent | AIP31066 , HD44780, KS0066 , SPLC780 , ST7066 |
| Appearance | White on Blue |
| Connection | Pin Header |
| Outline Dimension | 118.00(W)x36.0(H)x13.6(T)mm |
| Visual Area | 93.50x15.80mm |
| Active Area | 88.30(W)x11.50(H)mm |
| Dot (Pixel) Size | 0.60x0.65mm |
| Dot (Pixel) Pitch | 0.65x0.70mm |
| IC Package | COB |
| Display Type | STN-LCD Blue |
| Touch Panel Optional | No |
| Sunlight Readable | No |
| Viewing Direction | 6:00 |
| Backlight Color | White Color |
| Backlight Current (Typ) | 30mA |
| Power Supply(Typ) | 5V |
| Supply Current for LCM(Max) | 1800uA |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
