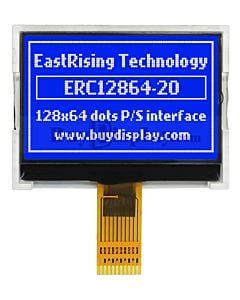

2 inch Low Cost White 128x64 Graphic COG LCD Display ST7567 SPI
- Buy 10 for US$2.34 each and save 3%
- Buy 30 for US$2.27 each and save 5%
- Buy 50 for US$2.21 each and save 8%
- Buy 100 for US$2.15 each and save 10%
- Buy 500 or more Quote Request
-
This Item:
2 inch Low Cost White 128x64 Graphic COG LCD Display ST7567 SPI
US$2.40
-
8051 Microcontroller Development Board for Graphic LCD ERC12864-20
US$51.77
-
Total price
Description
ERC12864FSF-20 is 2 inch white background with 128x64 monochrome black pixels cog(chip on glass) lcd module,ST7567 controller,compact size,high contrast,wide operating temperature,wide view angle,white led backlight,fstn lcd,soldering type fpc connection,It supports 4-wire serial spi interface.
It's easily controlled by MCU such as 8051,PIC,AVR,ARDUINO,ARM and Raspberry Pi.It can be used in any embedded systems,industrial device,security,medical and hand-held equipment.
Of course, we wouldn't just leave you with a datasheet and a "good luck!".For 8051 microcontroller user,we prepared the detailed tutorial such as interfacing, demo code and Development Kit at the bottom of this page.
Datasheet for Graphic LCD Module,Controller
Format | Documents Name | Language | Update Date | Size |
---|---|---|---|---|
ERC12864-20_Datasheet | English | Jul-07-2023 |
834K
|
|
Controller IC ST7567_Datasheet | English | Mar-10-2006 | 1.3M |
Tutorial- 8051 Microcontroller
Format | Documents Name | Language | Update Date | Size |
---|---|---|---|---|
English |
Jul-20-2023
|
256K | ||
N/A |
N/A
|
N/A |
Gross Weight (kg) | 0.0320 |
---|---|
Manufacturer | EastRising |
Continuity Supply | We promise the long term continuity supply for this product no less than 10 years since 2023. |
Part Number | ERC12864FSF-20 |
Display Format | 128x64 Pixels (Dots) |
Interface | 4-wire SPI |
IC or Equivalent | ST7567 |
Appearance | Black on White |
Diagonal Size | 2.0” |
Connection | Soldering FPC |
Outline Dimension | 53.10(W)x40.00(H)x5.1(T)mm |
Visual Area | 47.50x30.30mm |
Active Area | 42.93(W)x26.00(H)mm |
Dot (Pixel) Size | 0.305x0.376mm |
Dot (Pixel) Pitch | 0.335x0.406mm |
IC Package | COG |
Display Type | FSTN-LCD Grey |
Touch Panel Optional | No |
Sunlight Readable | No |
Viewing Direction | 6:00 |
Backlight Color | White Color |
Backlight Current (Typ) | 75mA |
Power Supply(Typ) | 3.3V |
Operating Temperature | -20℃~70℃ |
Storage Temperature | -30℃~80℃ |
