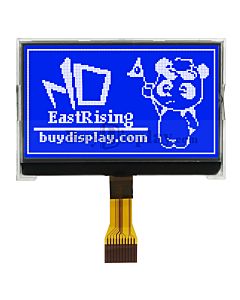

2 inch Low Cost Blue 128x64 Graphic COG LCD Display ST7567 SPI
US$2.40
- Buy 10 for US$2.34 each and save 3%
- Buy 30 for US$2.27 each and save 5%
- Buy 50 for US$2.21 each and save 8%
- Buy 100 for US$2.15 each and save 10%
- Buy 500 or more Quote Request
Shipping
Payment
Tax Info
Warranty
Return Policy
Continulty Supply
Shipping
We cooperate with DHL,FEDEX,TNT,EMS China Post and Singapore Post for shipment and choose the most appropriate one for the destination .A shipping cost estimate is displayed during online checkout based on the country you provide.
Payment
We primarily use paypal to process secure online payments. Through PayPal, we accept MasterCard, VISA, American Express,Discover cards.We also accept payment by wire transfer and west union.
Tax Information
ALL prices listed on buydisplay exclude taxes,import fees, and customs duties. Customers may be subject to these fees.
Warranty
All products are covered under our limited warranty, which provides all products are free of functional defects for a period of one year after receipt of order and all products are free of visual defects and missing parts for a period of 7 days after receipt of order.If a product was damaged during shipping or the order is incorrect, please notify us within 3 days after receipt of order.
Return Policy
Products under warranty can be returned for repair or replacement.Before returning a product, you must contact us for a Return Material Authorization (RMA).If you have a product out of warranty that you would like to repair, please also contact us.
Continulty Supply
We promise the long terms continuity supply.Some controller IC or glass cell may stop the production by supplier,we'll try our efforts to find the compatible ones as replacement.
Frequently Bought Together
-
This Item:
2 inch Low Cost Blue 128x64 Graphic COG LCD Display ST7567 SPI
US$2.40
-
8051 Microcontroller Development Board for Graphic LCD ERC12864-20
US$51.77
-
Total price
Description
ERC12864SBSF-20 is 2 inch blue background with 128x64 monochrome White pixels cog(chip on glass) lcd module,ST7567 controller,compact size,high contrast,wide operating temperature,wide view angle,white led backlight,stn-blue lcd,soldering type fpc connection,It supports 4-wire serial spi interface.
It's easily controlled by MCU such as 8051,PIC,AVR,ARDUINO,ARM and Raspberry Pi.It can be used in any embedded systems,industrial device,security,medical and hand-held equipment.
Of course, we wouldn't just leave you with a datasheet and a "good luck!".For 8051 microcontroller user,we prepared the detailed tutorial such as interfacing, demo code and Development Kit at the bottom of this page.
Datasheet for Graphic LCD Module,Controller
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
 |
ERC12864-20_Datasheet | English | Jul-07-2023 |
834K
|
|
Controller IC ST7567_Datasheet | English | Mar-10-2006 | 1.3M |
Tutorial- 8051 Microcontroller
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
 |
English |
Jul-20-2023
|
256K | |
 |
N/A |
N/A
|
N/A |
| Gross Weight (kg) | 0.0320 |
|---|---|
| Manufacturer | EastRising |
| Continuity Supply | We promise the long term continuity supply for this product no less than 10 years since 2023. |
| Part Number | ERC12864SBSF-20 |
| Display Format | 128x64 Pixels (Dots) |
| Interface | 4-wire SPI |
| IC or Equivalent | ST7567 |
| Appearance | White on Blue |
| Diagonal Size | 2.0” |
| Connection | Soldering FPC |
| Outline Dimension | 53.10(W)x40.00(H)x5.1(T)mm |
| Visual Area | 47.50x30.30mm |
| Active Area | 42.93(W)x26.00(H)mm |
| Dot (Pixel) Size | 0.305x0.376mm |
| Dot (Pixel) Pitch | 0.335x0.406mm |
| IC Package | COG |
| Display Type | STN-LCD Blue |
| Touch Panel Optional | No |
| Sunlight Readable | No |
| Viewing Direction | 6:00 |
| Backlight Color | White Color |
| Backlight Current (Typ) | 75mA |
| Power Supply(Typ) | 3.3V |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
