2.8"OLED Modules 256x64 Graphic Display SSD1322 Blue on Black
- Buy 10 for US$20.93 each and save 3%
- Buy 30 for US$20.36 each and save 5%
- Buy 50 for US$19.80 each and save 8%
- Buy 100 for US$19.23 each and save 11%
- Buy 500 or more Quote Request
Shipping
Payment
Tax Info
Warranty
Return Policy
Continulty Supply
-
This Item:
2.8"OLED Modules 256x64 Graphic Display SSD1322 Blue on Black
US$21.49
-
8051 Microcontroller Development Board for OLED Display ER-OLED028-1
US$22.26
-
Total price
Description

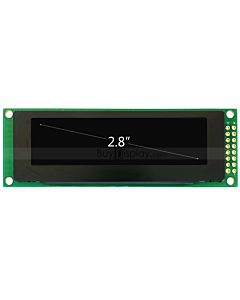

ER-OLED028-1B is the graphic OLED display module made of 256x64 individual,blue OLED pixels,diagonal is only 2.8 inch.The controller ic SSD1322, communicates via 6800/8080 8-bit parallel and 3-wire/4-wire serial interface. Because the display makes its own light, no backlight is required. This reduces the power required to run the OLED and is why the display has such high contrast,extremely wide viewing angle and extremely operating temperature.The fpc is the connector type,we offer optional zif connector(fpc connector).
It's easily controlled by MCU such as 8051,PIC,AVR,ARDUINO,ARM and Raspberry Pi.It can be used in any embedded systems,industrial device,security,medical and hand-held device.
Of course, we wouldn't just leave you with a datasheet and a "good luck!".For 8051 microcontroller user,we prepared the detailed tutorial such as interfacing, demo code and Development Kit at the bottom of this page.
Datasheet for OLED Display,Controller,Connector
| Format | Documents Name | Version | Language | Update Date | Size |
|---|---|---|---|---|---|
 |
2.8 inch 256x64 Pixels OLED Display Module Datasheet | 1.0 | English | May-01-2013 |
633K
|
|
Controller IC SSD1322 Datasheet | 1.0 | English | Apr-01-2008 | 1.3M |
|
30 Pins 0.5mm Pitch ZIF Connector (FPC Connector) Datasheet | 1.0 | English | Jul-26-2012 | 255K |
Tutorial- 8051 Microcontroller
| Format | Documents Name | Version | Language | Update Date | Size |
|---|---|---|---|---|---|
 |
1.0 | English |
May-01-2013
|
66K | |
|
1.0 | English |
May-01-2013
|
164K | |
 |
N/A | N/A |
N/A
|
N/A |
| Gross Weight (kg) | 0.0190 |
|---|---|
| Manufacturer | EastRising |
| Continuity Supply | We promise the long term continuity supply for this product no less than 10 years since 2015. |
| Part Number | ER-OLED028-1B |
| Display Format | 256x64 Dots |
| Interface | 3-wire SPI, 4-wire SPI, 6800 8-bit Parallel , 8080 8-bit Parallel |
| IC or Equivalent | SSD1322 |
| Appearance | Blue on Black |
| Diagonal Size | 2.8“ |
| Connection | Plug-in FPC |
| Outline Dimension | 84.00(W)x25.80(H)x2.00(T)mm |
| Visual Area | 71.104x19.264mm |
| Active Area | 69.104(W)x17.264(H)mm |
| Dot (Pixel) Size | 0.254x0.254mm |
| Dot (Pixel) Pitch | 0.27x0.27mm |
| IC Package | COG |
| Display Type | OLED |
| Touch Panel Optional | No |
| Sunlight Readable | No |
| Contrast Ratio(Typ) | 2000:1 |
| Viewing Angle Range | Left:80.0 , Right:80.0 , Up:80.0 , Down:80.0 degree |
| Brightness(Typ) | 80cd/m2 |
| Power Supply(Typ) | 2.8V |
| Operating Temperature | -30℃~85℃ |
| Storage Temperature | -40℃~90℃ |
-
Vichathorn Piyathanavong
2020-07-11 17:06:33
Hello,
I have a question regarding the compatibility of this screen. Can I replace my screen "Univision Model UG-5664ALBDF01" with this screen (2.8"OLED Modules 256x64 Graphic Display SSD1322 Blue on Black)?
Please kindly let me know
Thanks & Regards,
VP1 answer-
Sajay Peng
2020-07-13 01:12:32
Hi,
I believe Univision Model UG-5664ALBDF01 is fully compatible with our 2.8"OLED Modules 256x64 Graphic Display SSD1322 Blue on Black, You could order a few samples to verify this first, Any other questions pls let me know.
Thank you!
-
