2.6" inch e-Ink 152x296 e-Paper Display Panel Red/White/Black SPI
- Buy 10 for US$6.40 each and save 3%
- Buy 30 for US$6.21 each and save 6%
- Buy 50 for US$6.03 each and save 8%
- Buy 100 for US$5.85 each and save 11%
- Buy 500 or more Quote Request
Shipping
Payment
Tax Info
Warranty
Return Policy
Continulty Supply
Summary: Update ER-EPD026-1R to ER-EPD026A1-1R
Reason: The controller IC UC8151C used on ER-EPD026-1R is EOL,so we change to new controller IC SSD1675 used on ER-EPD026A1-1R.
Impact: ER-EPD026-1R is the same with ER-EPD026A1-1R in mechanical dimension and electrical spec except the controller IC.As old customer,you only need to upate your initialization code we prepared in this page.
Description
ER-EPD026A1-1R is e-paper/e-ink panel that mimics the appearance of ink on normal paper. Unlike conventional displays, ePaper reflects light – just like ordinary paper – and is capable of holding text and images indefinitely, even without electricity. Because of this, ePaper displays and single board computers or microcontrollers are a match made in heaven as together they use a very small amount of power whilst still bringing a display to your project.
The ePaper display that comes with this ER-EPD026A1-1R is a 2.6 inch 152x296 resolution with red/white/black color with embedded controller, communicating via SPI interface. One fantastic aspect of the ePaper display is the fact they don't need any power to keep the image on the screen. Just like a Kindle, you can read whatever is on your screen in daylight without any reflection. It comes with SSD1675A controller,compact size (COG package),high contrast, sun readable,FPC connection,optional FPC connector.It supports 3/4-wire serial interface.

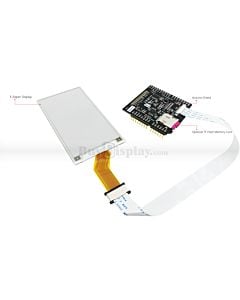

To fastly get started, please consider our e-paper panel connected with arduino shield or raspberry pi HAT. Libraries and samples are available for all of them.
Package Content
◇ e-Paper Display Panel x 1
* Please select if you wish to have optional accessories.
Application
◇ Logistics
◇ Reusable Transit Item
◇ Station Terminal
◇ Smart Card
◇ Smart Identity Tag
◇ Seat Number Tab
◇ Smart Luggage Tag
◇ Smart Coffee Cup
◇ Smart Home Application
◇ Identification & Access
◇ Display the Latest Weather Forecast
◇ Display Your Own Twitter Feed
◇ E-paper room booking system
◇ Other IoT (Internet of Things) Devices
◇ 1D/2D Barcode Electronic Shelf Label
Datasheet
| Format | Documents Name | Version | Language | Update Date | Size |
|---|---|---|---|---|---|
 |
2.6 inch E-Paper/E-Ink Display Datasheet | 1.0 | English | Apr-28-2020 |
449K
|
|
Controller IC SSD1675A Datasheet | 1.0 | English | Dec-17-2016 | 1.44M |
|
24 Pins 0.5mm Pitch ZIF Connector Drawing | 1.0 | English | Jul-26-2012 | 317K |
Tutorial-8051
| Format | Documents Name | Version | Language | Update Date | Size |
|---|---|---|---|---|---|
 |
8051 Interfacing and Demo Code | 1.0 | English | Apr-28-2020 |
1.07M
|
| Gross Weight (kg) | 0.0300 |
|---|---|
| Manufacturer | EastRising |
| Continuity Supply | We promise the long term continuity supply for this product no less than 10 years since 2019. |
| Part Number | ER-EPD026A1-1R |
| Display Format | 152x296 Dots |
| Interface | 3-wire SPI, 4-wire SPI |
| IC or Equivalent | SSD1675 |
| Appearance | Red+Black on White |
| Diagonal Size | 2.6“ |
| Connection | Plug-in FPC |
| Outline Dimension | 36.30(W)x71.82(H)x1.18(T)mm |
| Visual Area | 30.70x60.09mm |
| Active Area | 30.70(W)x60.09(H)mm |
| Dot (Pixel) Pitch | 0.203x0.202mm |
| IC Package | COG |
| Display Type | E-Paper |
| Touch Panel Optional | No |
| Sunlight Readable | Yes |
| Viewing Angle Range | Left:85.0 , Right:85.0 , Up:85.0 , Down:85.0 degree |
| Brightness(Typ) | 80cd/m2 |
| Power Supply(Typ) | 3V |
| Operating Temperature | 0℃~40℃ |
| Storage Temperature | -25℃~60℃ |
