2.5"Graphic COG 128x128 LCD Display Modules ST7541 Black on White
- Buy 10 for US$8.70 each and save 3%
- Buy 30 for US$8.47 each and save 5%
- Buy 50 for US$8.23 each and save 8%
- Buy 100 for US$8.00 each and save 11%
- Buy 500 or more Quote Request
Shipping
Payment
Tax Info
Warranty
Return Policy
Continulty Supply
-
This Item:
2.5"Graphic COG 128x128 LCD Display Modules ST7541 Black on White
US$8.94
-
8051 Microcontroller Development Board for Graphic LCD ERC128128-1
US$22.26
-
Total price
Description

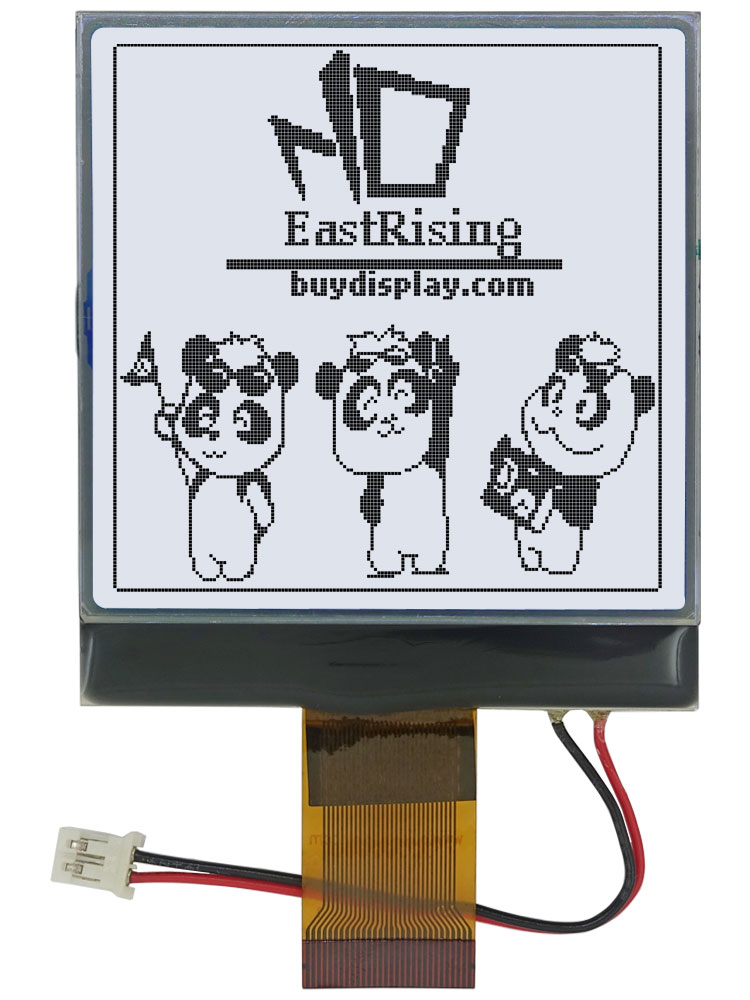

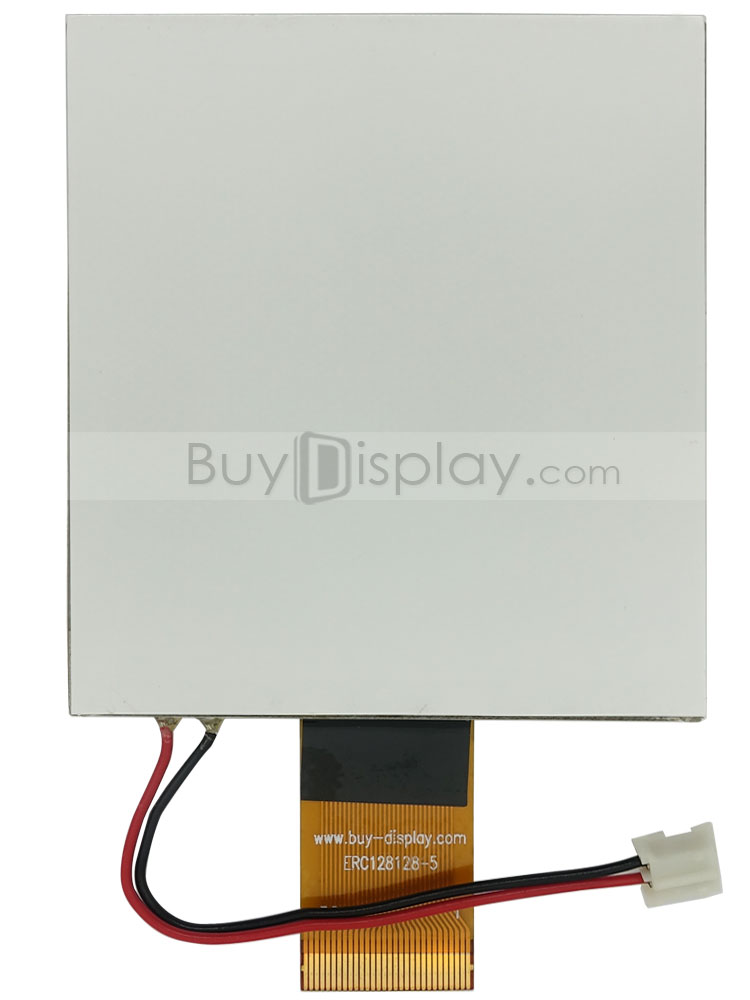

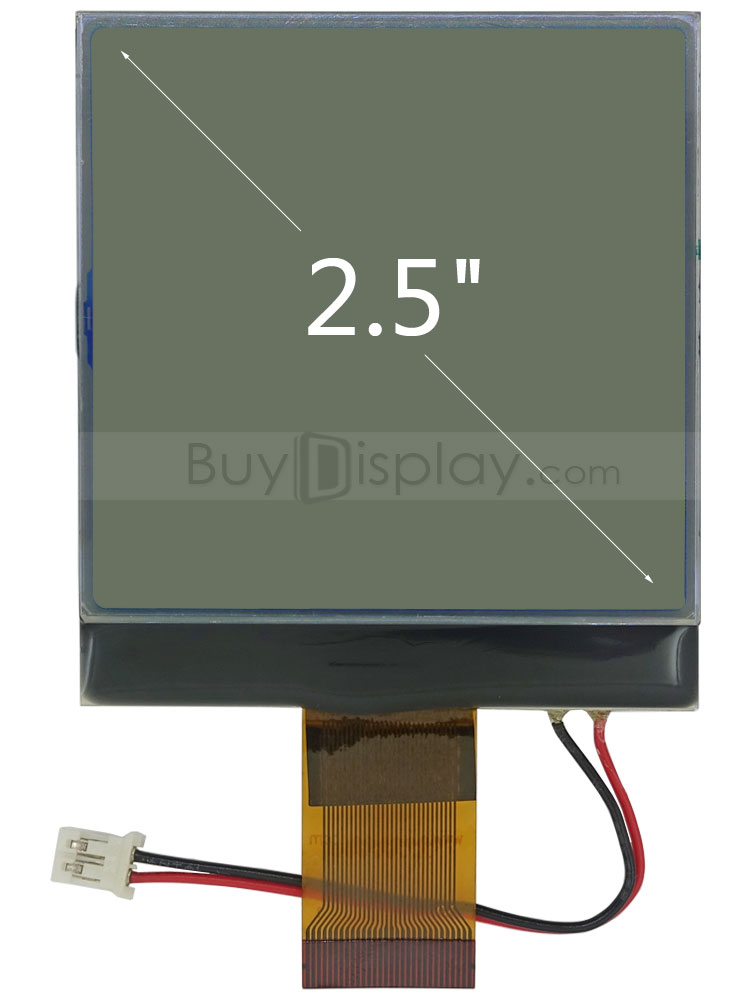

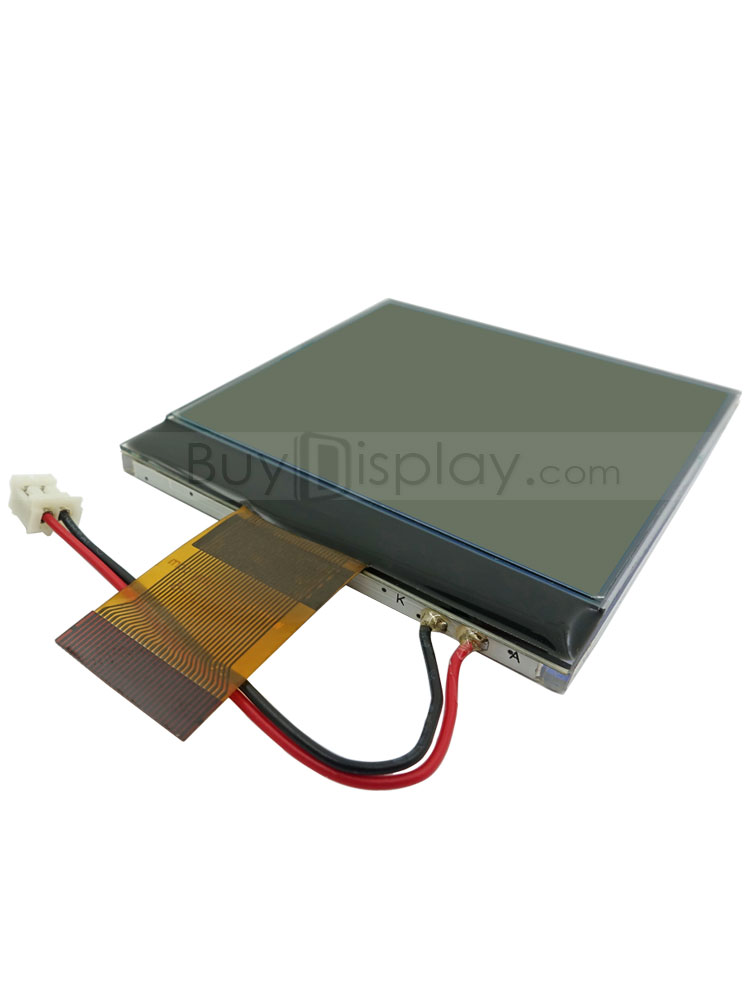

ERC128128FS-1 is 2.5 inch white background with 128x128 monochrome black pixels cog(chip on glass) lcd module,ST7541 controller,compact size,high contrast,wide operating temperature,wide view angle,white led backlight,fstn lcd,fpc connection,optional zif connector and led backlight connector.It supports 6800 8-bit,8080 8-bit parallel interface.
It's easily controlled by MCU such as 8051,PIC,AVR,ARDUINO,ARM and Raspberry Pi.It can be used in any embedded systems,industrial device,security,medical and hand-held equipment.
Of course, we wouldn't just leave you with a datasheet and a "good luck!".For 8051 microcontroller user,we prepared the detailed tutorial such as interfacing, demo code and Development Kit at the bottom of this page.
Datasheet for Graphic LCD Module,Controller,Connector
| Format | Documents Name | Version | Language | Update Date | Size |
|---|---|---|---|---|---|
 |
128x128 Dots Graphic COG LCD Module Datasheet | 1.0 | English | May-22-2014 |
467K
|
|
Controller IC ST7541 Datasheet | 1.0 | English | Sep-03-2007 | 1.1M |
|
30 Pins 0.5mm Pitch ZIF Connector (FPC Connector) | 1.0 | English | Jul-26-2012 | 325K |
|
2 Pins 2.0mm Pitch Backlight Connector Datasheet | 1.0 | English | Jul-26-2012 | 214K |
Tutorial- 8051 Microcontroller
| Format | Documents Name | Version | Language | Update Date | Size |
|---|---|---|---|---|---|
 |
1.0 | English |
Jun-18-2009
|
44K | |
|
1.0 | English |
Jun-21-2009
|
191K | |
 |
N/A | N/A |
N/A
|
N/A |
Related Product
You may wish this display also supports the serial interface as well as the parallel interface.The part number ERC128128FS-5 should meet your requirment. The controller is changed to ST7571 and supports 8080/6800 4-bit/8-bit parallel and 3/4 wire serial interface.
ERC128128FS-5 is still not our general product ,we don't have enough stock .You have to email ([email protected]) our sales to buy samples or orders. Besides the minimum order quantity is no lesss than 500pcs per order.The production lead time is 5-6 weeks.
| Format | Documents Name | Version | Language | Update Date | Size |
|---|---|---|---|---|---|
|
1.0 | English |
Jun-02-2018
|
400K | |
|
1.0 | English |
Aug-08-2008
|
978K | |
|
1.0 | English |
Jul-26-2012
|
325K | |
|
1.0 | English |
Jul-26-2012
|
214K |
| Gross Weight (kg) | 0.0570 |
|---|---|
| Manufacturer | EastRising |
| Continuity Supply | We promise the long term continuity supply for this product no less than 10 years since 2015. |
| Part Number | ERC128128FS-1 |
| Display Format | 128x128 Dots |
| Interface | 6800 8-bit Parallel , 8080 8-bit Parallel |
| IC or Equivalent | ST7541 |
| Appearance | Black on White |
| Diagonal Size | 2.5” |
| Connection | Plug-in FPC |
| Outline Dimension | 55.0(W)x60.2(H)x5.2(T)mm |
| Visual Area | 48.78x48.78mm |
| Active Area | 44.78(W)x44.78(H)mm |
| Dot (Pixel) Size | 0.33x0.33mm |
| Dot (Pixel) Pitch | 0.35x0.35mm |
| IC Package | COG |
| Display Type | FSTN-LCD Grey |
| Touch Panel Optional | No |
| Sunlight Readable | Yes |
| Viewing Direction | 6:00 |
| Backlight Color | White Color |
| Backlight Current (Typ) | 60mA |
| Power Supply(Typ) | 3V |
| Supply Current for LCM(Max) | 1400uA |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
