10.1"1024x600 50 Pins TFT LCD Display w/Touch Panel and Touch Driver
- Buy 10 for US$27.30 each and save 3%
- Buy 30 for US$26.54 each and save 5%
- Buy 50 for US$25.82 each and save 8%
- Buy 100 for US$25.08 each and save 11%
- Buy 500 or more Quote Request
Shipping
Payment
Tax Info
Warranty
Return Policy
Continulty Supply
Description
ER-TFT101-1 is 1024x600 dots 10.1" color tft lcd module display with HX8282+HX8696 driver,Optional capacitive and resistive touch screens,superior display quality,super wide view angle and easily controlled by MCU such as 8051, PIC, AVR, ARDUINO,ARM and Raspberry PI
It can be used in any embedded systems,consumer electronics,car,gps,industrial device,security and hand-held equipment which requires display in high quality and colorful image.It supports rgb interface. FPC with zif connector is easily to assemble or remove.
Of course, we wouldn't just leave you with a datasheet and a "good luck!".Here is the link for 10.1"TFT Touch Shield with Libraries, Examples.Schematic Diagram for Arduino Due,Mega 2560,Uno and 8051 Microcontroller Development Board&Kit.
The LED backlight driver IC we suggest to use for this display is PT4110.
What's included in the package ?
| Number | Standard Accessory Name | Quantity |
|---|---|---|
| 1 | 10.1 inch 1024x600 pixels TFT LCD Display | 1 |
Datasheet for TFT LCD Display,Controller,Connector
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
 |
ER-TFT101-1_Datasheet | English |
Apr-23-2015 |
1.03M |
 |
ER-TFT101-1_3D Model | English |
Sep-05-2024 |
823K |
|
Driver IC (HX8282) Datasheet | English | Apr-01-2010 | 2.0M |
|
Driver IC (HX8696) Datasheet | English | Aug-01-2010 | 725K |
|
50 Pins 0.50mm Pitch ZIF Connector Drawing | English | Jul-26-2012 | 273K |
|
2 Pins 3.5mm Pitch SMD Horizontal Backlight Connector Drawing | English | Sep-28-2011 | 360K |
Datasheet for Touch Panel,Controller,Connector
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
|
|
10.1 inch 4-Wire Touch Panel Datasheet | English | Apr-21-2015 | 235K |
|
|
4 Pins 1.0mm Pitch ZIF Connector Drawing for Touch Panel | English | Jul-26-2012 | 268K |
|
|

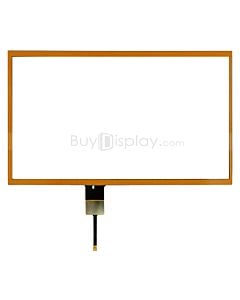

10.1 inch Capacitive Touch Panel with Controller Outline | English | Apr-12-2018 | 283K |
|
|
Capacitive Touch Controller GT9271 Datasheet | English | Nov-11-2014 | 1.65M |
|
|
6 Pins 0.5mm Pitch ZIF Connector (FPC Connector) Datasheet | English | Jun-10-2014 | 272K |
| Gross Weight (kg) | 0.5550 |
|---|---|
| Manufacturer | EastRising |
| Continuity Supply | We promise the long term continuity supply for this product no less than 10 years since 2013. |
| Part Number | ER-TFT101-1 |
| Display Format | 1024x600 Pixels |
| Interface | RGB |
| IC or Equivalent | HX8282, HX8696 |
| Appearance | RGB |
| Diagonal Size | 10.1“ |
| Connection | Plug-in FPC |
| Outline Dimension | 235.0(W)x143.0(H)X5.0(T)mm |
| Visual Area | 226.40x128.70mm |
| Active Area | 222.72(W)x125.28(H)mm |
| Dot (Pixel) Size | 0.2175(W)x0.2088(H)mm |
| IC Package | COG |
| Display Type | TFT-LCD Color |
| Touch Panel Optional | Yes |
| Sunlight Readable | No |
| Contrast Ratio(Typ) | 500:1 |
| Colors | 65K/262K/16.7M |
| Viewing Direction | 6:00 |
| Viewing Angle Range | Left:70.0 , Right:70.0 , Up:50.0 , Down:50.0 degree |
| Brightness(Typ) | 150cd/m2 |
| Backlight Color | White Color |
| Backlight Current (Typ) | 120mA |
| Power Supply(Typ) | 3.3V |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
-
Edgar Miguel Rueda
2020-06-11 19:34:37
Does this works with RTD2660H controller ?
1 answer-
Tony Song
2020-06-12 06:09:34

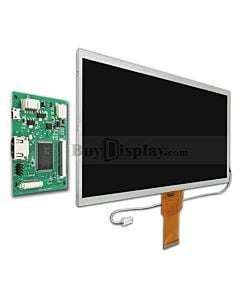

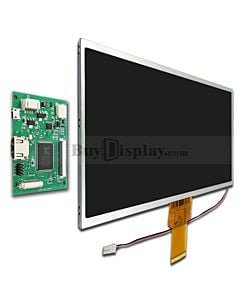

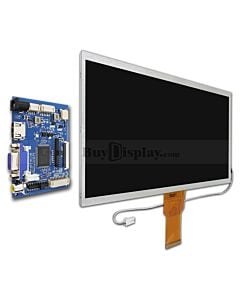

Yes,ER-TFT101-1 this display can works with RTD2660H.In fact,our HDMI driver board uses this controller.Pls check it from the link below https://www.buydisplay.com/10-inch-raspberry-pi-touch-screen-with-small-hdmi-driver-board-1024x600
-
